What is PVC-M pipe?

   PVC-M pipe, fully termed Modified Polyvinyl Chloride Pipe for Impact Resistance, represents an advanced evolution of traditional PVC-U (unplasticized polyvinyl chloride) piping. Its core breakthrough lies in polymer toughening technology, which introduces elastomer particles (such as chlorinated polyethylene CPE or acrylic copolymer ACR) into the PVC matrix to form a "sea-island" composite structure. This modification enhances impact strength by 3-5 times and increases elongation at break by over 50% compared to PVC-U, fundamentally addressing the inherent brittleness and susceptibility to sudden fracture in conventional PVC-U pipes.

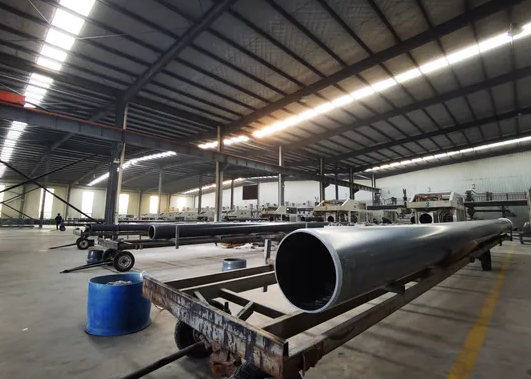

   The manufacturing process employs twin-screw co-extrusion technology: PVC resin is first uniformly blended with toughening agents, stabilizers (environmentally friendly calcium-zinc systems), and processing aids in a high-speed mixer. The mixture is then melt-compounded in a conical twin-screw extruder within a temperature range of 175-185°C, followed by shaping through a calibration sleeve with vacuum cooling. Critical process controls include precise particle size distribution of toughening agents (0.1-0.5μm), melt pressure stability (±0.3MPa tolerance), and controlled cooling gradients to prevent crystalline stress concentration—ensuring the formation of a continuous networked toughened phase within the pipe wall microstructure.

   Mechanically, PVC-M pipes exhibit unique "ductile failure" characteristics: when subjected to impact, crack propagation is arrested by elastomer particles, inducing plastic deformation that absorbs energy without brittle fracture. Test data shows a notched impact strength (20°C) of 20 kJ/m² (far exceeding PVC-U's 4 kJ/m²), hydraulic burst pressure 30% higher than equivalent PVC-U pipes, and exceptional fatigue resistance—withstanding ≥100,000 pressure cycles at 0.8MPa (versus PVC-U's 20,000 cycles). These properties make it particularly suitable for unstable geological zones or buried installations under frequent vehicular loads.

   A core engineering advantage is its reduced wall thickness design. Enhanced material strength allows PVC-M pipes to achieve 25-40% thinner walls than PVC-U at equivalent pressure ratings (e.g., DN200 PN16 pipe: PVC-U requires 7.2mm wall, PVC-M only 4.3mm). This reduces raw material consumption by over 30% and delivers three key benefits: lower transportation costs (increased linear meters per unit weight), improved installation efficiency (faster cutting and joining), and enhanced flow capacity (15% increased throughput due to larger inner diameter). Verified by the British Standard BS PAS 27, lifecycle costs for DN500 networks using PVC-M are 22% lower than PVC-U alternatives.

   Environmental and safety compliance is ensured through triple safeguards: raw materials meet NSF/ANSI 61 potable water standards (lead content <0.1ppm); calcium-zinc stabilizers replace toxic lead salts; and a Vicat softening temperature ≥83°C guarantees safety in hot-water applications. Primary uses include municipal water mains (especially in seismic zones), mine dewatering systems, agricultural irrigation, and fire protection networks. In Oslo’s permafrost water network retrofit, PVC-M pipes withstood -25°C ground heave with a failure rate only 1/7 that of ductile iron pipes.

   Material selection should consider toughening system types: CPE-modified pipes offer lower cost but slightly reduced long-term weatherability, ideal for buried applications; ACR-modified versions provide superior UV resistance for above-ground installations. During installation, attention must be paid to elastomeric seal socket connections (10% deeper insertion depth than PVC-U) and avoidance of open-flame bending. Current R&D focuses on nano-SiO₂ reinforced formulations, enabling PN25-grade pipes to achieve ring stiffness exceeding SN16, thereby expanding their application in high-pressure deep-trench scenarios.
