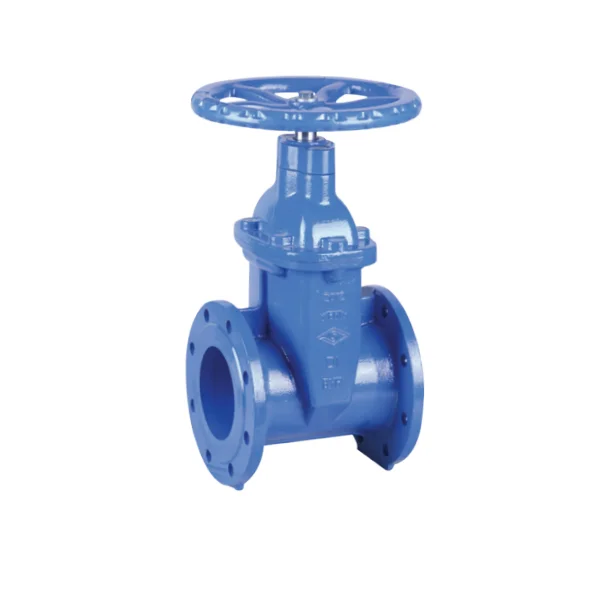

BS 5163 Flanged Resilient NRS Gate Valve (Z45X) PN10/16
• Connection Ends: Flange to BS EN 1092-2:1997
• Working Pressure: PN10/16
• Temperature Range: 0℃- 100℃
• Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550
• Working Pressure: PN10/16
• Temperature Range: 0℃- 100℃
• Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550

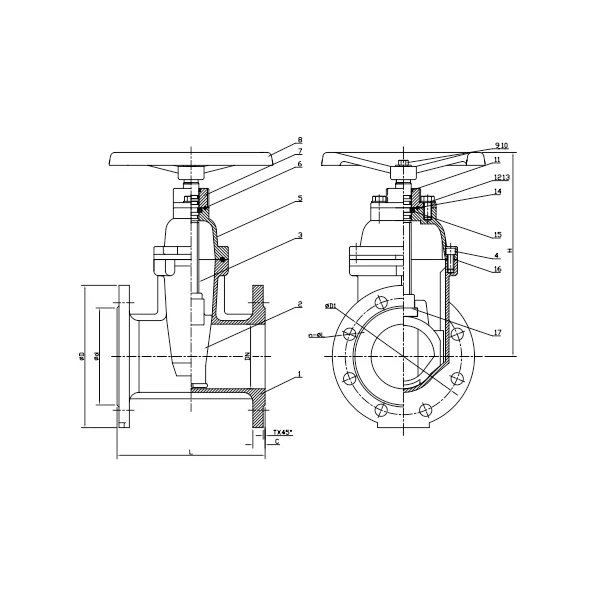

MATERIAL SPECIFICATION
|
Part No. |
Part |
Standard Specification |
Options |
|
1 |
Valve Body |
EN-GJS-450-10 |
|
|
2 |
Resilient Wedge Disc |
EN-GJS-450-10+EPDM |
|
|
3 |
Stem |
Stainless Steel |
SS304,SS316,SS420,SS431 |
|
4 |
Bolt |
Carbon Steel Zinc Plated |
SS304,SS16 |
|
5 |
Bonnet |
EN-GJS-450-10 |
|
|
6 |
O-Ring |
NBR |
EPDM |
|
7 |
Gland |
EN-GJS-450-10 |
|
|
8 |
Handwheel |
EN-GJS-450-10 |
Pressed Steel |
|
9 |
Bolt |
Carbon Steel Zinc Plated |
SS304,SS16 |
|
10 |
Fla Washer |
Carbon Steel Zinc Plated |
SS304,SS16 |
|
11 |
Ring Wiper |
NBR |
EPDM |
|
12 |
Bolt |
Carbon Steel Zinc Plated |
SS304,SS16 |
|
13 |
Flat Washer |
Carbon Steel Zinc Plated |
SS304,SS16 |
|
14 |
O-Ring |
NBR |
EPDM |
|
15 |
Thrust Washer |
Brass HPb59-1(Type A) Not Available(Type B) |
|
|
16 |
Bonnet Gasket |
EPDM |
NBR |
|
17 |
Wedge Nut |
Brass HPb59-1 |
Bronze ZQSn5-5-5 |
Note:For special material request other than standard specification,please indicate clearly on the inquiry or order list.
|
DN |
PN |
Dimensions(mm) |
|||||||||
|
Inch |
mm |
L |
H |
D |
D1 |
d |
C |
T |
n-φL |
||
|
TypeA |
TypeB |
||||||||||
|
2" |
50 |
10/16 |
178 |
218 |
254 |
165 |
125 |
99 |
19 |
3 |
4-Φ19 |
|
2.5" |
65 |
10/16 |
190 |
232 |
275 |
185 |
145 |
118 |
19 |
3 |
4-Φ19 |
|
3" |
80 |
10/16 |
203 |
281 |
301 |
200 |
160 |
132 |
19 |
3 |
8-Φ19 |
|
4" |
100 |
10/16 |
229 |
316 |
355 |
220 |
180 |
156 |
19 |
3 |
8-Φ19 |
|
5" |
125 |
10/16 |
254 |
393 |
393 |
250 |
210 |
184 |
19 |
3 |
8-Φ19 |
|
6" |
150 |
10/16 |
267 |
420 |
448 |
285 |
240 |
211 |
19 |
3 |
8-φ23 |
|
8" |
200 |
10 |
292 |
490 |
548 |
340 |
295 |
266 |
20 |
3 |
8-Φ23 |
|
16 |
12-φ23 |
||||||||||
|
10" |
250 |
10 |
330 |
626 |
626 |
405 |
350 |
319 |
22 |
3 |
12-φ23 |
|
16 |
355 |
12-φ28 |
|||||||||
|
12" |
300 |
10 |
356 |
722 |
722 |
460 |
400 |
370 |
24.5 |
4 |
12-φ23 |
|
16 |
410 |
12-φ28 |
|||||||||
|
14" |
350 |
10 |
381 |
800 |
800 |
520 |
460 |
429 |
26.5 |
4 |
16-Φ23 |
|
16 |
470 |
16-Φ28 |
|||||||||
|
16" |
400 |
10 |
406 |
870 |
870 |
580 |
515 |
480 |
28 |
4 |
16-Φ28 |
|
16 |
525 |
16-Φ31 |
|||||||||
|
18" |
450 |
10 |
432 |
1108 |
1108 |
640 |
565 |
530 |
30 |
4 |
20-Φ28 |
|
16 |
585 |
548 |
20-φ31 |
||||||||
|
20" |
500 |
10 |
457 |
1130 |
1130 |
715 |
620 |
582 |
31.5 |
4 |
20-φ28 |
|
16 |
650 |
609 |
20-Φ34 |
||||||||
|
24" |
600 |
10 |
508 |
1311 |
1311 |
840 |
725 |
682 |
36 |
5 |
20-φ31 |
|
16 |
770 |
720 |
20-φ37 |
||||||||
|
28" |
700 |
10 |
610 |
1311 |
1311 |
895 |
840 |
794 |
32.5 |
5 |
24-φ31 |
|
32" |
800 |
10 |
660 |
1750 |
1750 |
1015 |
950 |
901 |
35 |
5 |
24-φ34 |
