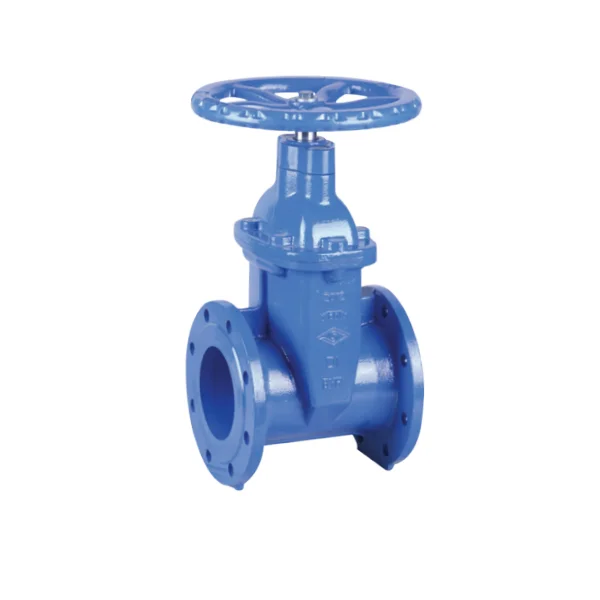

BS 5163 Flanged Resilient NRS Gate Valve (Z45X) PN25
• Connection Ends: Flange to BS EN 1092-2:1997
• Working Pressure: PN25
• Temperature Range: 0℃- 100℃
• Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550
• Working Pressure: PN25
• Temperature Range: 0℃- 100℃
• Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550
MATERIAL SPECIFICATION
|
Part No. |
Part |
Standard Specification |
Options |
|
1 |
Valve Body |
EN-GJS-450-10 |
|
|
2 |
Resilient Wedge Disc |
EN-GJS-450-10+EPDM |
|
|
3 |
Stem |
Stainless Steel |
SS304,SS316,SS420,SS431 |
|
4 |
Bolt |
Carbon Steel Zinc Plated |
SS304,SS16 |
|
5 |
Bonnet |
EN-GJS-450-10 |
|
|
6 |
O-Ring |
NBR |
EPDM |
|
7 |
Gland |
EN-GJS-450-10 |
|
|
8 |
Handwheel |
EN-GJS-450-10 |
Pressed Steel |
|
9 |
Bolt |
Carbon Steel Zinc Plated |
SS304,SS16 |
|
10 |
Fla Washer |
Carbon Steel Zinc Plated |
SS304,SS16 |
|
11 |
Ring Wiper |
NBR |
EPDM |
|
12 |
Bolt |
Carbon Steel Zinc Plated |
SS304,SS16 |
|
13 |
Flat Washer |
Carbon Steel Zinc Plated |
SS304,SS16 |
|
14 |
O-Ring |
NBR |
EPDM |
|
15 |
Thrust Washer |
Brass HPb59-1(Type A) Not Available(Type B) |
|
|
16 |
Bonnet Gasket |
EPDM |
NBR |
|
17 |
Wedge Nut |
Brass HPb59-1 |
Bronze ZQSn5-5-5 |
Note:For special material request other than standard specification,please indicate clearly on the inquiry or order list.
|
DN |
PN |
Dimensions(mm) |
||||||||
|
Inch |
mm |
|
L |
H |
D |
D1 |
d |
C |
T |
n-φL |
|
2" |
50 |
25 |
178 |
218 |
165 |
125 |
99 |
19 |
3 |
4-φ19 |
|
2.5" |
65 |
25 |
190 |
232 |
185 |
145 |
118 |
19 |
3 |
8-φ19 |
|
3" |
80 |
25 |
203 |
281 |
200 |
160 |
132 |
19 |
3 |
8-φ19 |
|
4" |
100 |
25 |
229 |
316 |
235 |
190 |
156 |
19 |
3 |
8-φ23 |
|
5" |
125 |
25 |
254 |
393 |
270 |
220 |
184 |
19 |
3 |
8-φ28 |
|
6" |
150 |
25 |
267 |
420 |
300 |
250 |
211 |
20 |
3 |
8-φ28 |
|
8" |
200 |
25 |
292 |
490 |
360 |
310 |
274 |
20 |
3 |
12-φ28 |
|
10" |
250 |
25 |
330 |
626 |
425 |
370 |
319 |
22 |
3 |
12-φ31 |
|
12" |
300 |
25 |
356 |
722 |
485 |
430 |
370 |
24.5 |
4 |
16-φ31 |
