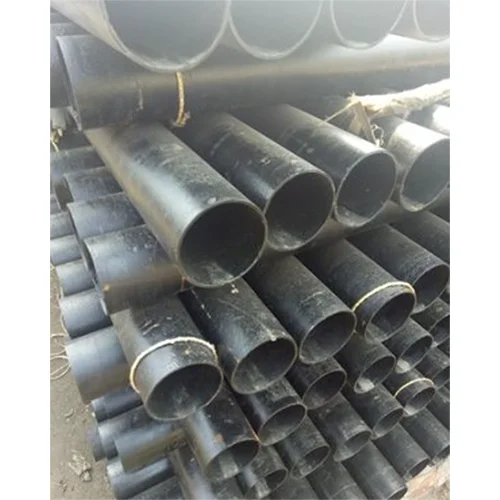

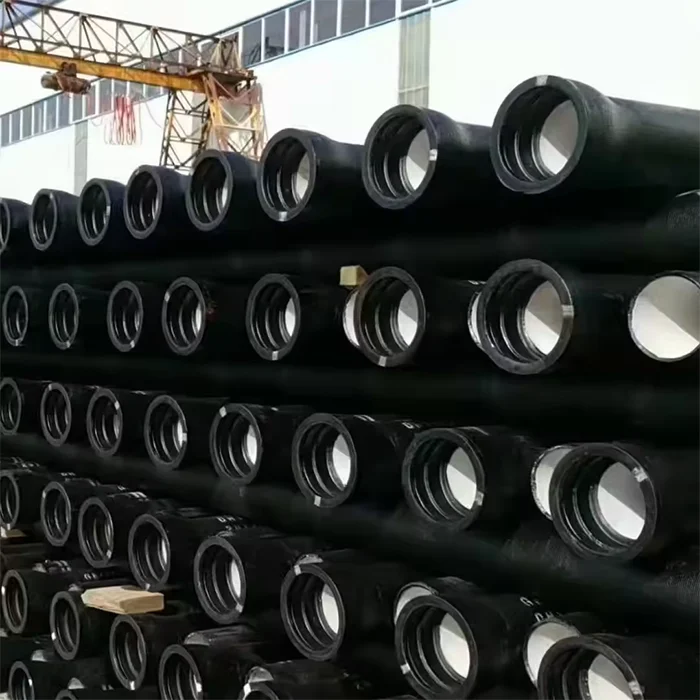

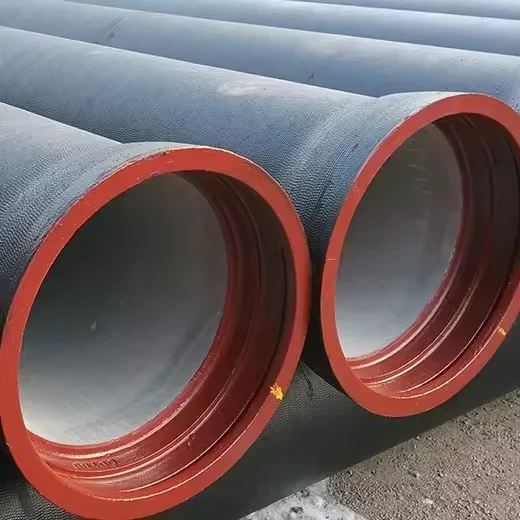

Towing Ductile Iron Pipe

The emergence of horizontal drill rod technology avoids road excavation and damage to other underground pipelines, reducing users' trenchless costs. At the same time, underground pipelines have less impact on traffic and the environment. In addition, it can run underground. In recent years, it has been widely used in the construction of underground pipelines such as municipal, industrial, and electric power. Horizontal drill rods are suitable for medium and small diameter ductile iron pipes.

Standards: ISO2531, EN545, EN598.

Category: Class K, Class C

Connection method: Drag ductile iron pipe

Range: DN80-DN2600

Length: 8.15m, 6.0m, 5.7m, can be customized according to customer requirements

Use: Water supply engineering drainage, sewage irrigation, water pipeline, etc.

Inner coating: Portland cement mortar lining;

Sulfate-resistant cement mortar lining;

High alumina cement mortar;

Fusion epoxy coating;

Polyurethane lining ceramic epoxy lining PU;

Coating can also be done according to customer requirements

Extenal: Zinc (130 g/m2) + Asphalt (70 microns) painting/130 g/m2;

Fusion epoxy coating/Zinc aluminum alloy (400g/m2) + Liquid epoxy coating/400g/m2;

Coating can also be done according to customer requirements.

Accessories: Rubber ring (SBR, NBR, EPDMVSBR, NBR, EPDM)

Packaging: Bulk, steel strapping.
