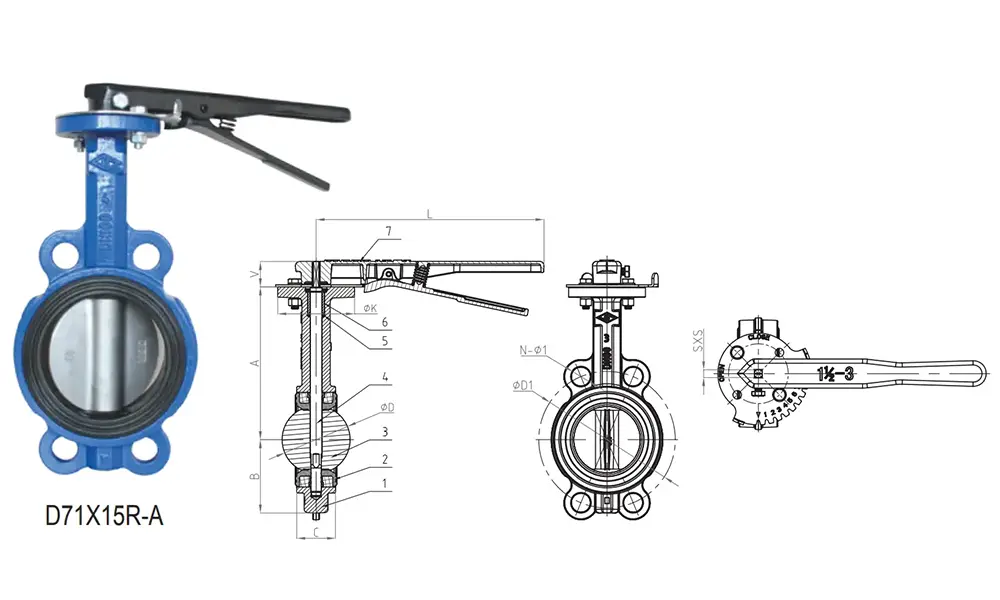

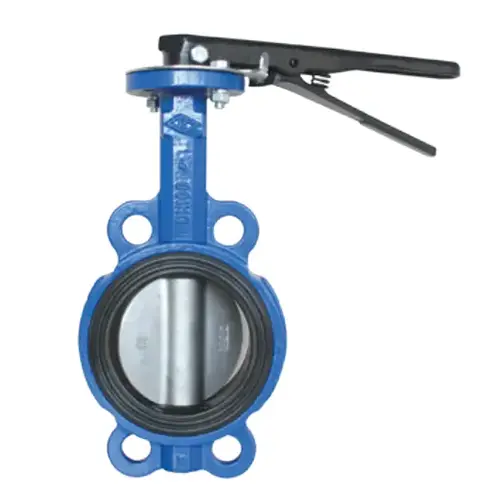

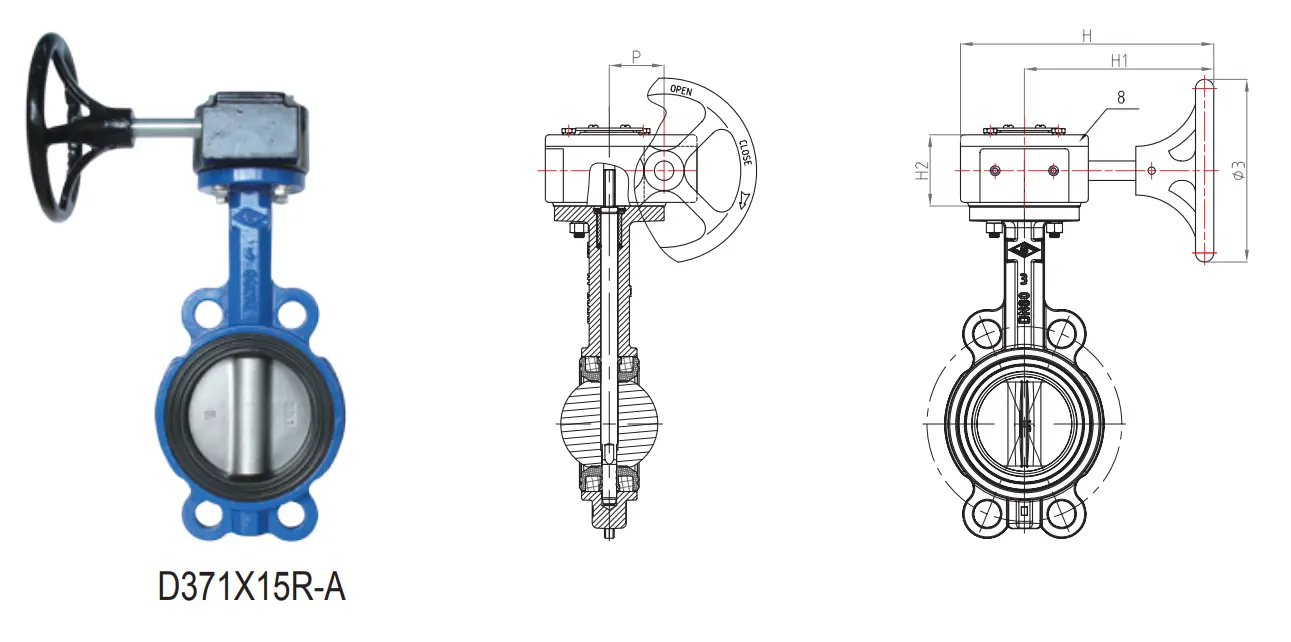

EN 1092 Wafer Butterfly Valve
Model:D71X15R-A D371X15R-A PN10/16
EN 1092 Wafer Butterfly Valve D71X15R-A D371X15R-A PN10/16
• Design Standard: BS EN 593
• Connection Ends: BS EN 1092 PN10/PN16
• Top Flange Standard: ISO 5211 Stem drive by keys, parallel or diagonal square or flat head
• Working Pressure: PN10/16
• Temperature Range: 0℃- 100℃
• Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550
• Design Standard: BS EN 593
• Connection Ends: BS EN 1092 PN10/PN16
• Top Flange Standard: ISO 5211 Stem drive by keys, parallel or diagonal square or flat head
• Working Pressure: PN10/16
• Temperature Range: 0℃- 100℃
• Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550
Hot Tags: EN 1092 Wafer Butterfly Valve D71X15R-A D371X15R-A PN10/16
