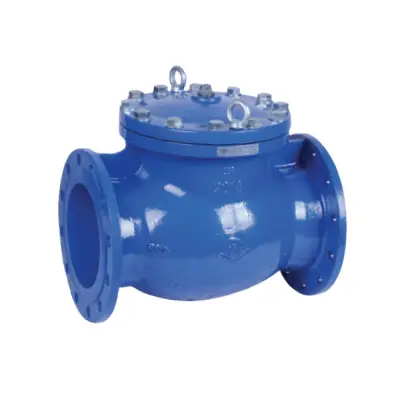

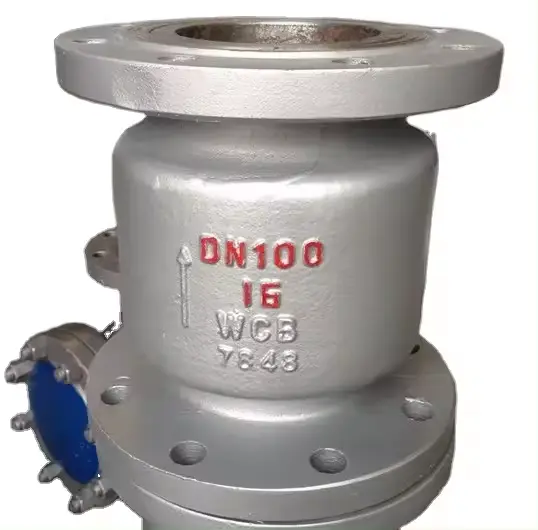

Check Valve
The warranty period of this check valve is 1 year, and its valve body material is carbon steel.

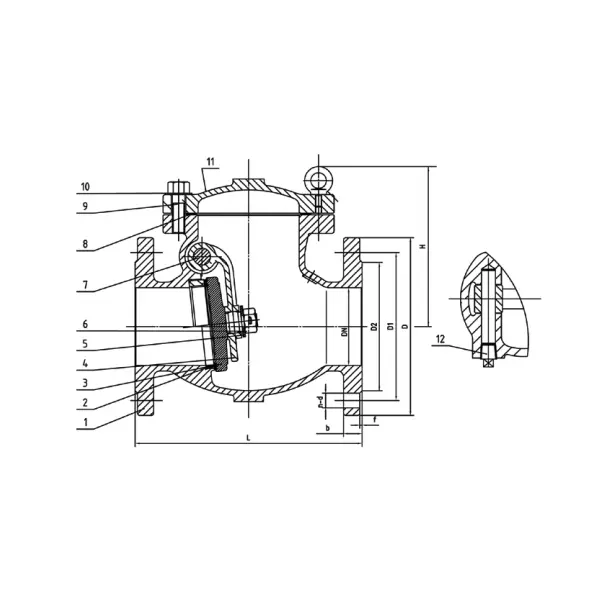

| DN | PN | Dimensions(mm) | ||||||||
| Inch | mm | L | D | D1 | D2 | b | n-φd | f | H | |
| 2 | 50 | 10/16 | 200 | 165 | 125 | 99 | 19 | 4-19 | 3 | 146 |
| 2.5 | 65 | 10/16 | 240 | 185 | 145 | 118 | 19 | 4-19 | 3 | 155 |
| 3 | 80 | 10/16 | 260 | 200 | 160 | 132 | 19 | 8-19 | 3 | 173 |
| 4 | 100 | 10/16 | 300 | 220 | 180 | 156 | 19 | 8-19 | 3 | 180 |
| 5 | 125 | 10/16 | 350 | 250 | 210 | 184 | 19 | 8-19 | 3 | 212 |
| 6 | 150 | 10/16 | 400 | 285 | 240 | 211 | 19 | 8-23 | 3 | 260 |
| 8 | 200 | 10 | 500 | 340 | 295 | 266 | 20 | 8-23 | 3 | 290 |
| 16 | 500 | 340 | 295 | 266 | 20 | 12-23 | 3 | 290 | ||
| 10 | 250 | 10 | 600 | 405 | 350 | 319 | 22 | 12-23 | 3 | 339 |
| 16 | 600 | 405 | 355 | 319 | 22 | 12-28 | 3 | 339 | ||
| 12 | 300 | 10 | 700 | 460 | 400 | 370 | 24.5 | 12-23 | 4 | 376 |
| 16 | 700 | 460 | 410 | 370 | 24.5 | 12-28 | 4 | 376 | ||
Warranty period: 1 year
Material: Carbon steel
Type: Check valve
Customization support: OBM
Principle: A valve whose opening and closing parts are circular gate discs and rely on their own weight and medium pressure to produce movement to block the backflow of the medium.
Classification: Lift type and swing type
