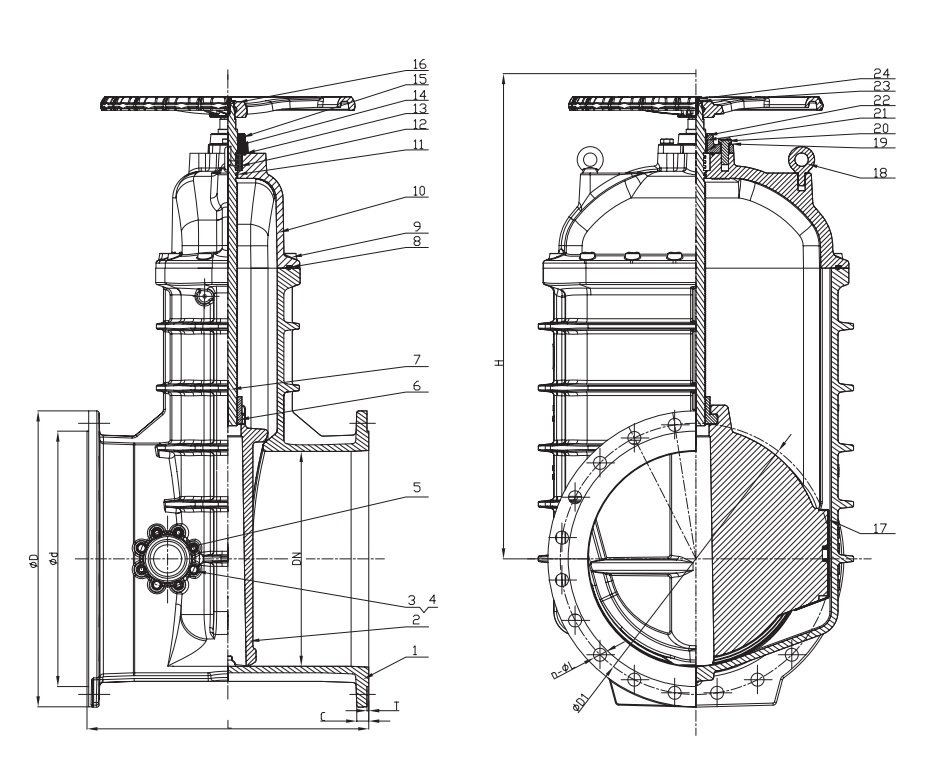

Flanged Resilient NRS Gate Valve with Bypass Outlet
Model:PN10/16
The Flanged Resilient NRS Gate Valve with Bypass Outlet excels in critical water networks requiring safe isolation under pressure, like municipal water mains and fire protection systems. BS 5163 Gate Valve installations are proven in numerous utility and industrial projects globally.Utilizing advanced resilient seat sealing and robust pressure-balancing bypass systems, the BS 5163 Gate Valve is engineered for reliable, low-torque operation. BS 5163 Gate Valve production adheres to strict quality controls within ISO-certified facilities.
The Flanged Resilient NRS Gate Valve with Bypass Outlet (Z45XL) is a gate valve combining resilient sealing (excellent seal, good impurity tolerance), flanged connection (reliable, easy maintenance), and a non-rising stem (space-saving). Its core value lies in the integrated bypass system, which is used to balance upstream and downstream pressure before opening the main valve. This significantly reduces operating torque and protects the main valve from damage caused by opening/closing under high differential pressure, ensuring safe, reliable, and long-term operation in critical applications. It is widely used in water systems, fire protection, and industrial settings requiring pressure equalization at pipeline control points. The model Z45XL explicitly identifies its flanged connection, geared operation (broadly), resilient seat, and bypass features.
• Connection Ends: Flange to BS EN 1092-2:1997 • Working Pressure: PN10/16
• Temperature Range: 0℃- 100℃
• Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550
Hot Tags: Flanged Resilient NRS Gate Valve with Bypass Outlet
