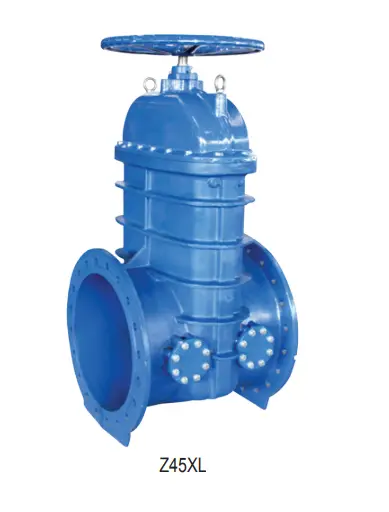

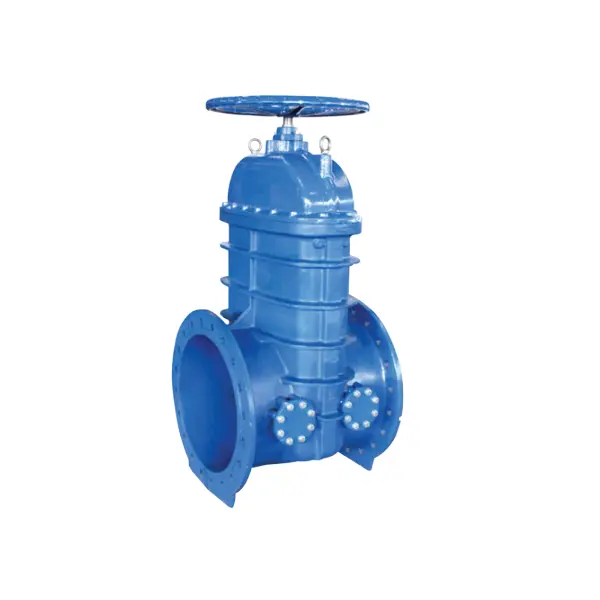

BS 5163 Flanged Resilient NRS Gate Valve with Bypass Outlet
Model:(Z45XL) PN10/16
BS 5163 Flanged Resilient NRS Gate Valve with Bypass Outlet (Z45XL) PN10/16
• Connection Ends: Flange to BS EN 1092-2:1997
• Working Pressure: PN10/16
• Temperature Range: 0℃- 100℃
• Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550
• Connection Ends: Flange to BS EN 1092-2:1997
• Working Pressure: PN10/16
• Temperature Range: 0℃- 100℃
• Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550

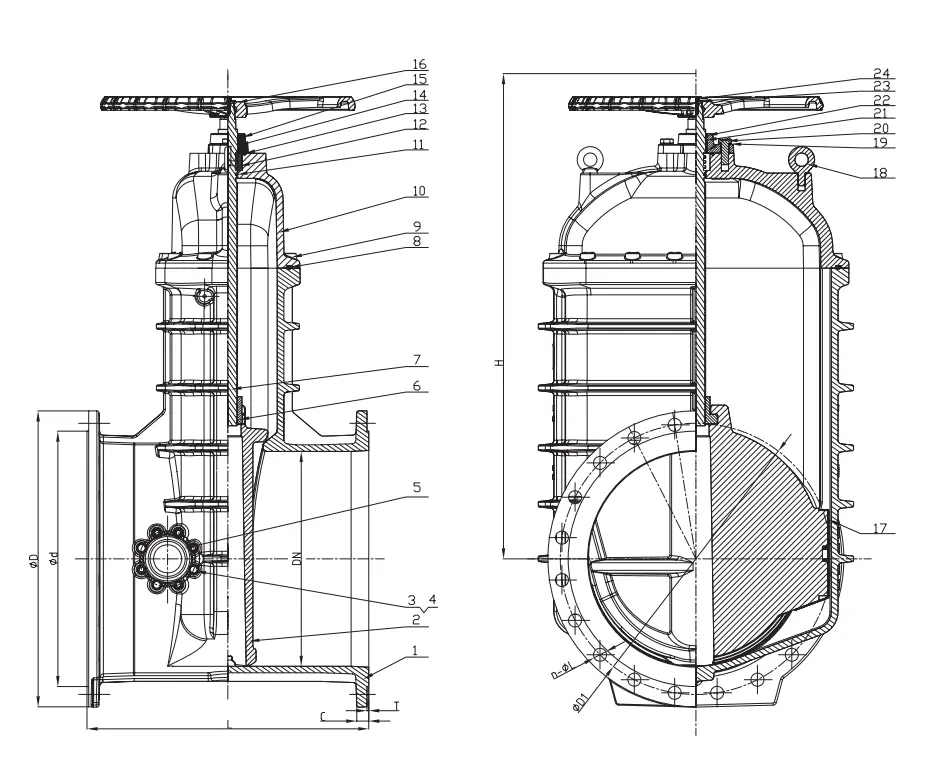

| MATERIAL SPECIFICATION | |||
| Part No. | Part | Standard Specification | Options |
| 1 | Valve Body | EN-GJS-450-10 |
|
| 2 | Resilient Wedge Disc | EN-GJS-450-10+EPDM |
|
| 3 | Bolt | Carbon Steel Zinc Plated | SS304, SS316 |
| 4 | Flat Washer | Carbon Steel Zinc Plated | SS304, SS316 |
| 5 | By-pass Valve Cover | EN-GJS-450-10 |
|
| 6 | Wedge Nut | Brass HPb59-1 |
|
| 7 | Stem | Stainless Steel | SS304/316/420/431 |
| 8 | Bonnet Gasket | EPDM | NBR |
| 9 | Bolt | Carbon Steel Zinc Plated | SS304, SS316 |
| 10 | Bonnet | EN-GJS-450-10 |
|
| 11 | O-Ring | NBR | EPDM |
| 12 | Thrust Washer | Carbon Steel Zinc Plated | SS304, SS316 |
| 13 | O-Ring | NBR | EPDM |
| 14 | Axis Guide | Brass HPb59-1 |
|
| 15 | Gland | EN-GJS-450-10 |
|
| 16 | Handwheel | EN-GJS-450-10 | Pressed Steel |
| 17 | Guide Sleeve | EPDM |
|
| 18 | Eye Bolt | Carbon Steel Zinc Plated |
|
| 19 | Flat Washer | Carbon Steel Zinc Plated | SS304, SS316 |
| 20 | Bolt | Carbon Steel Zinc Plated | SS304, SS316 |
| 21 | 0-Ring | NBR | EPDM |
| 22 | Ring Wiper | EPDM | NBR |
| 23 | Flat Washer | Carbon Steel Zinc Plated | SS304, SS316 |
| 24 | Bolt | Carbon Steel Zinc Plated | SS304, SS316 |
|
Note:1.For special material request other than standard specification, please indicate clearly on the inquiry or order list. Bypasfiting and valve assembly not to be quoted and supplied unless there is specific statement in order or inquiry. 2.If bypass fitting and valve are required, please state it clearly in your purchase order and the costs will be added accordingly.” |
|||
| DN | PN | Dimensions(mm) | ||||||||
| Inch | mm | L | H | D | D1 | d | C | T | n-φL | |
| 18" | 450 | 10 | 650 | 1108 | 640 | 565 | 530 | 30 | 4 | 20-φ28 |
| 16 | 585 | 548 | 20-31 | |||||||
| 20" | 500 | 10 | 700 | 1130 | 715 | 620 | 582 | 31.5 | 4 | 20-Φ28 |
| 16 | 650 | 609 | 20-34 | |||||||
| 24" | 600 | 10 | 800 | 1311 | 840 | 725 | 682 | 36 | 5 | 20-31 |
| 16 | 770 | 720 | 20-φ37 | |||||||
