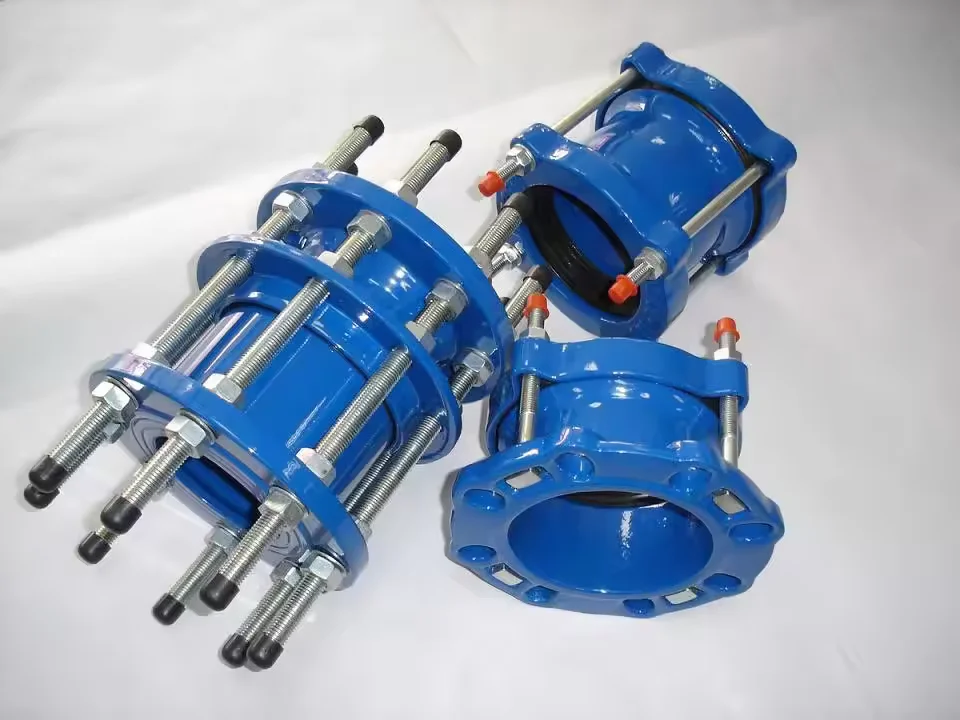

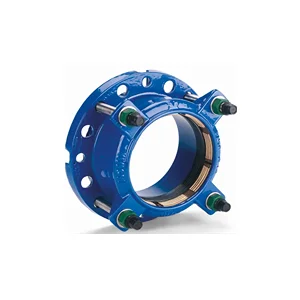

Pipe Flange Adapter
The inner coating of this pipe flange adapter is ordinary cement, high sulfur cement, high alumina cement, epoxy powder FBE, polyurethane or polyethylene, which can be customized according to customer requirements.
The product categories of ductile iron pipes and fittings mainly include: water supply pipes, drainage pipes, thermal pipes, polyfluoroester lined pipes, argon resin lined pipes, epoxy ceramic lined pipes, PE lined pipes, zinc-aluminum alloy pipes, jacking pipes, drag pipes, self-anchored pipes, sewage pipes and matching pipe fittings.

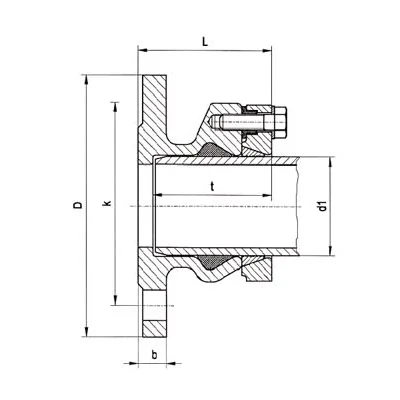

Specification:
| No. | Part | Material |
| 1 | Body | GGG450-10 |
| 2 | Lip seal | EPDM |
| 3 | Spacer bush | PE |
| 4 | Grip ring | Brass Ms58 |
| 5 | Lock ring | GGG450-10 |
| 6 | Bolts | Stainless Steel |
| Size | Pipe | Dimensions | Weight | ||||
|
DN mm |
d1 mm |
D mm |
k mm |
b mm |
I mm |
t mm |
kg |
| 50 | 63 | 165 | 125 | 19 | 90 | 80 | 3.6 |
| 60 | 63 | 175 | 135 | 19 | 90 | 80 | 3.8 |
| 60 | 75 | 175 | 138 | 19 | 92 | 82 | 4.0 |
| 65 | 63 | 185 | 148 | 19 | 90 | 80 | 4.3 |
| 65 | 75 | 185 | 145 | 19 | 92 | 82 | 4.3 |
| 80 | 75 | 200 | 160 | 19 | 92 | 82 | 5.0 |
| 80 | 90 | 200 | 160 | 19 | 95 | 85 | 5.5 |
| 100 | 90 | 220 | 180 | 19 | 95 | 85 | 6.8 |
| 100 | 110 | 220 | 180 | 19 | 95 | 85 | 6.2 |
| 100 | 125 | 220 | 180 | 19 | 97 | 87 | 7.0 |
| 125 | 110 | 250 | 210 | 19 | 95 | 85 | 7.8 |
| 125 | 125 | 250 | 210 | 19 | 97 | 87 | 8.2 |
| 125 | 140 | 250 | 210 | 19 | 103 | 93 | 8.5 |
| 150 | 140 | 285 | 240 | 19 | 103 | 93 | 11.3 |
| 150 | 160 | 285 | 240 | 19 | 115 | 105 | 10.5 |
| 150 | 180 | 285 | 240 | 19 | 125 | 115 | 11.6 |
| 200 | 200 | 340 | 295 | 20 | 135 | 125 | 18.0 |
| 200 | 225 | 340 | 295 | 20 | 138 | 128 | 16.0 |
| 250 | 250 | 400 | 350 | 22 | 155 | 145 | 22.0 |
| 250 | 280 | 400 | 350 | 22 | 158 | 148 | 29.0 |
| 300 | 315 | 455 | 400 | 24.5 | 185 | 175 | 44.0 |
| Note:Above flanges are PN10, flange PN16 are available. | |||||||
Product parameters
Standard: ISO2531, EN545, EN598
Grade: K class, C class
Connection method: T-type interface, GT-type interface, self-anchor interface
Diameter: DN80-DN2600
Length: 8.15m, 6.0m, 5.7m
Applicable fields: urban water supply, drainage, sewage, etc.
Inner coating: ordinary cement, high sulfur cement, high alumina cement, epoxy powder FBE, PU or PE, customized
Outer coating: 99.99 zinc + black asphalt paint (70 microns), epoxy powder FBE, zinc-aluminum alloy + epoxy paint, PU, customized
Accessories: rubber ring
Packaging: bulk, steel strapping
Warranty period: 1 year
Material: ductile iron
Working pressure: PN10, PN16, PN25, PN40
Size: according to specific requirements
Standard: ISO2531 /EN545 /EN598
Applicable to PE pipes
Color: blue (epoxy resin)
