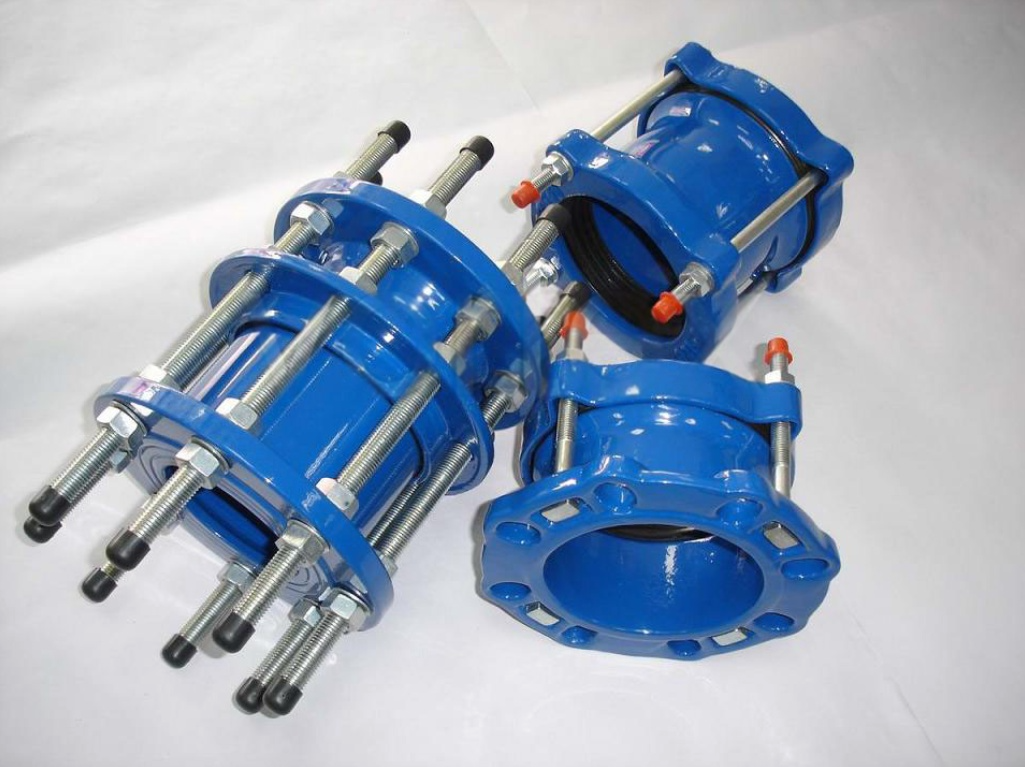

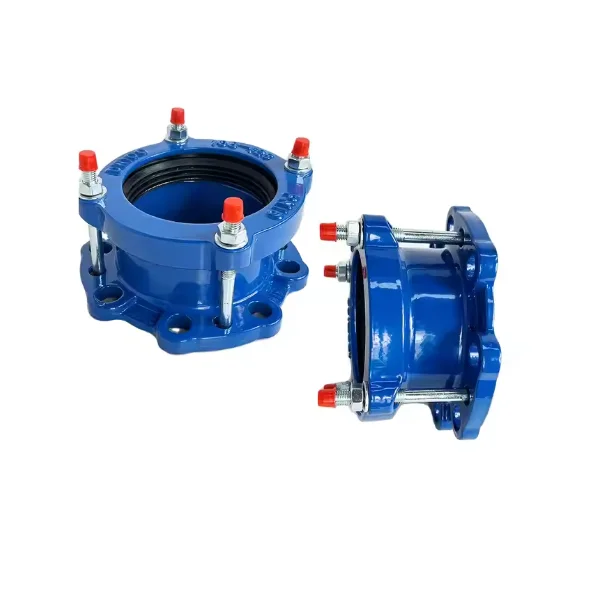

Ductile Iron Pipe Fittings
Our ductile iron pipe fittings complies with the standards of ISO2531, EN545 and EN598. Its grades are K and C. The connection methods include T-type interface, GT-type interface, self-anchoring interface, and the caliber is DN80-DN2600.

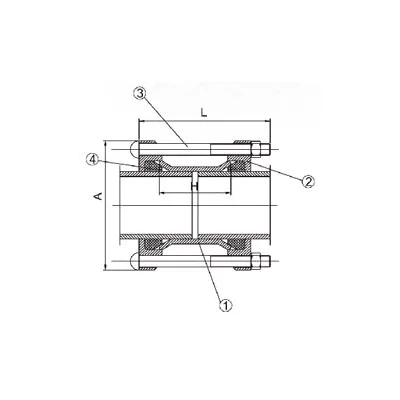

| Pipe | Range | Bolt | A | H | Weight | Pipe to fit | ||||||
| Norm |
|
L | No. | mm | mm | kgs | D | ST | PVC | AC | CI | GRP |
| DN40 | 48-60 | M12×170 | 2 | 150 | 98 | 2.4 |
|
★ | ▲ |
|
|
+ |
| DN50 | 59-72 | M12x170 | 2/4 | 156 | 98 | 2.5 |
|
★ | ▲ | ◆ | O | + |
| DN65 | 72-85 | M12x170 | 2/4 | 174 | 98 | 3.2 |
|
★ | ▲ |
|
O | + |
| DN80 | 88-103 | M12x180 | 4 | 185 | 98 | 4.0 |
● |
★ | ▲ | ◆ | O | + |
| DN100 | 96-116 | M12x180 | 4 | 205 | 98 | 4.5 | ● | ★ | ▲ | ◆ |
|
|
| DN100 | 108-120 | M12×190 | 4 | 210 | 98 | 4.6 | ● | ★ | ▲ |
|
|
|
| DN100 | 105-125 | M12x 190 | 4 | 210 | 98 | 4.6 | ● | ★ | ▲ | ◆ | O |
|
| DN100 | 109-128 | M12x 180 | 4 | 218 | 98 | 4.8 |
● |
★ | ▲ | ◆ | O |
+ |
| DN125 | 132-146 | M12x180 | 4 | 240 | 98 | 6.1 |
|
★ |
|
|
|
+ |
| DN125 | 138-153 | M12x 180 | 4 | 246 | 98 | 6.2 |
|
★ | ▲ |
|
O | + |
| DN150 | 158-172 | M12×200 | 4 | 275 | 105 | 7.0 | ● | ★ | ▲ |
|
|
|
| DN150 | 155-175 | M12x200 | 4 | 275 | 105 | 7.0 | ● | ★ | ▲ |
|
|
|
| DN150 | 159-182 | M12×200 | 4 | 280 | 110 | 7.2 |
● |
★ | ▲ | ◆ | O | + |
| DN175 | 192-210 | M12x210 | 4 | 312 | 130 | 8.0 |
|
★ | ▲ |
|
O |
|
| DN200 | 198-225 | M12×210 | 4 | 320 | 130 | 9.5 | ● | ★ | ▲ |
|
O | + |
| DN200 | 218-235 | M12×220 | 4/6 | 328 | 130 | 10.0 | ● | ★ | ▲ | ◆ | O | + |
| DN225 | 242-262 | M12×220 | 6 | 360 | 130 | 12.0 |
|
★ | ▲ | ◆ | O |
|
| DN250 | 250-267 | M12×220 | 6 | 368 | 130 | 14.0 |
|
|
▲ | ◆ | O |
|
| DN250 | 250-274 | M12x220 | 6 | 370 | 130 | 14.0 | ● | ★ | ▲ |
◆ |
O | + |
| DN250 | 272-289 | M12×220 | 6 | 382 | 130 | 14.0 |
● |
★ | ▲ |
◆ |
O | + |
| DN300 | 315-332 | M12×220 | 6 | 430 | 130 | 16.5 | ● | ★ | ▲ |
|
|
+ |
| DN300 | 322-339 | M12×220 | 6 | 435 | 130 | 16.0 | ● | ★ |
|
◆ | O | + |
| DN350 | 340-360 | M12×220 | 6/8 | 455 | 130 | 20.0 |
|
★ | ▲ | ◆ | O |
|
| DN350 | 351-378 | M14x230 | 8 | 510 | 130 | 23.0 |
● |
★ | ▲ | ◆ |
|
+ |
| DN350 | 374-391 | M14×230 | 8 | 520 | 130 | 24.0 |
● |
|
|
◆ |
|
|
| DN400 | 390-410 | M14×220 | 8 | 530 | 130 | 25.0 |
|
★ | ▲ |
◆ |
|
|
| DN400 | 398-430 | M14×270 | 8 | 560 | 140 | 26.0 |
● |
★ | ▲ | ◆ | O | + |
| DN400 | 417-437 | M14×240 | 8 | 555 | 130 | 28.0 |
● |
|
|
◆ | O | + |
| DN400 | 425-442 | M14×240 | 8 | 560 | 130 | 28.0 |
● |
|
|
|
O | + |
| DN450 | 450-463 | M14×270 | 8 | 585 | 130 | 30.0 |
|
★ | ▲ |
◆ |
O |
|
| DN450 | 455-475 | M14x270 | 10 | 600 | 130 | 32.0 |
|
★ |
|
◆ |
|
|
| DN450 | 476-500 | M14×270 | 10 | 620 | 130 | 36.0 | ● |
|
▲ |
◆ |
O |
|
| Dn500 | 500-508 | M16x270 | 10 | 620 | 130 | 38.0 |
|
★ | ▲ | ◆ | O |
|
| Dn500 | 500-533 | M14×280 | 10 | 680 | 140 | 39.0 | ● | ★ | ▲ |
|
|
+ |
| Dn500 | 526-546 | M14×270 | 10 | 663 | 130 | 40.0 | ● |
|
|
◆ | O | + |
| Dn600 | 600-630 | M14×270 | 10 | 725 | 130 | 47.0 |
|
★ | ▲ | ◆ | O |
|
| Dn600 | 608-636 | M14×270 | 10 | 740 | 130 | 48.0 | ● | ★ | ▲ |
|
|
+ |
| Dn600 | 630-650 | M14×270 | 10 | 745 | 130 | 50.0 | ● |
|
▲ |
|
O |
|
| Dn700 | 710-739 | M16×280 | 12 | 875 | 155 | 70.0 | ● | ★ | ▲ |
|
O | + |
| Dn800 | 816-842 | M16×330 | 12 | 986 | 180 | 80.0 | ● |
|
|
◆ | O | + |
Product parameters
Standard: ISO2531, EN545, EN598
Grade: K class, C class
Connection method: T-type interface, GT-type interface, self-anchor interface
Diameter: DN80-DN2600
Length: 8.15m, 6.0m, 5.7m
Applicable fields: urban water supply, drainage, sewage, etc.
Inner coating: ordinary cement, high sulfur cement, high alumina cement, epoxy powder FBE, PU or PE, customized
Outer coating: 99.99 zinc + black asphalt paint (70 microns), epoxy powder FBE, zinc-aluminum alloy + epoxy paint, PU, customized
Accessories: rubber ring
Packaging: bulk, steel strapping
Warranty period: 1 year
Material: thermoplastic elastomer
Working pressure: PN10, PN16
Features: leakproof, resistant to chemicals, UV rays, fungal growth and normal sewer gas
Color: according to customer requirements
Temperature range: -40-80℃
