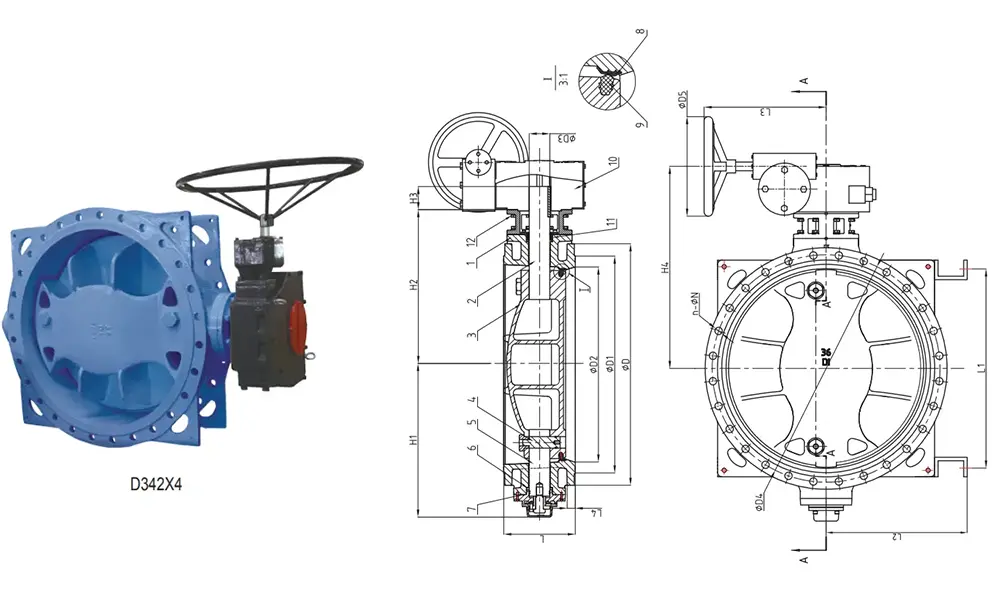

Double Eccentric Flanged Butterfly Valve
Model:D342X4 PN10
Double Eccentric Flanged Butterfly Valve D342X4 PN10
• Design Standard: BS EN 593 • Face to Face: BS EN 558 Series 13
• Connection Ends: BS EN 1092 PN10/PN16
• Top Flange Standard: ISO 5211 Stem drive by keys, parallel or diagonal square or flat head
• Working Pressure: PN10
• Temperature Range: 0℃- 100℃
• Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550
• Design Standard: BS EN 593 • Face to Face: BS EN 558 Series 13
• Connection Ends: BS EN 1092 PN10/PN16
• Top Flange Standard: ISO 5211 Stem drive by keys, parallel or diagonal square or flat head
• Working Pressure: PN10
• Temperature Range: 0℃- 100℃
• Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550
Hot Tags: Double Eccentric Flanged Butterfly Valve
