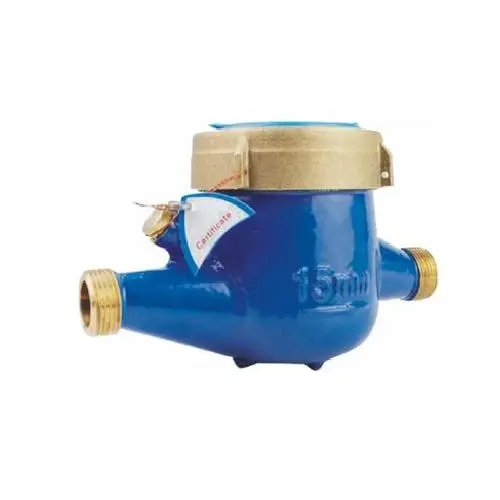

Multi-jet Water Meter
LXSG-15-50 multi jet Water meter is used for measuring the total volume of tap water flowing through closed pipes.the register can be made into dry or wet types,the body can be produced by stainless steel,brass,cast iron,plastic.size from DN15~DN50.Support OEM.
Key Features
Proven multi-jet flow meter design
▶Antimagnetic,Antifreezing
▶Vacuum sealed counter,keep clear in long term.
▶Accuracy:ISO4064.class B
R80/R100/R160(R=Q3/Q1)(optional)

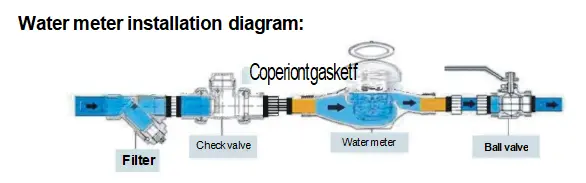

▶Install:Horizontal use/Vertical use
Max work pressure:PN16/PN10(optional) Pressure loss:≤0.063Mpa
▶Water temperature:T30,T50,T90(optional)
▶Body:Brass/iron/stainless steel/plastic/Nylon(optional)
Key Technical Specification
| Diameter(mm) | Class | Q4(m³/h) | Q3(m³/h) | Q2(m³/h) | Q1(m³/h) | Min.Reading(m³) | Max.Reading(m³) |
| DN15 | B | 3.125 | 2.5 | 0.05 | 0.03125 | 0.0001 | 99999 |
| DN20 | B | 5 | 4 | 0.08 | 0.05 | 0.0001 | 99999 |
| DN25 | B | 7.875 | 6.3 | 0.126 | 0.07875 | 0.0001 | 99999 |
| DN32 | B | 12.5 | 10 | 0.2 | 0.125 | 0.0001 | 99999 |
| DN40 | B | 20 | 16 | 0.32 | 0.2 | 0.001 | 99999 |
| DN50 | B | 31.25 | 25 | 3.15 | 0.5 | 0.001 | 99999 |
Size and Weight:
| Diameter | DN | 15 | 20 | 25 | 32 | 40 | 50 |
| Length | L1(mm) | 165 | 195 | 225 | 230 | 245 | 300 |
| Width | B(mm) | 98 | 98 | 103 | 103 | 125 | 135 |
| Height | H (mm) | 114 | 114 | 114 | 114 | 144 | 155 |
| Threaded Connection | d | R1/2 | R3/4 | R1 | R11/4 | R1Z₂ | R2 |
| D | G3/4 | G1 | G11/4 | G11/2 | G2 | G2/ | |
| Weight | kg | 1.2 | 1.6 | 2.6 | 3.2 | 4.5 | 7 |
A.Slow flow(Q1≤Q<Q2)Max permissible errors:±5%
B.Water temperatire≤30℃,Fast flow(Q2≤Q≤Q4),Max permissible errors:±2% Water temperatire>30℃,Fast flow(Q2≤Q≤Q4),Max permissible errors:±3%
