Smart Card Prepaid Water Meter

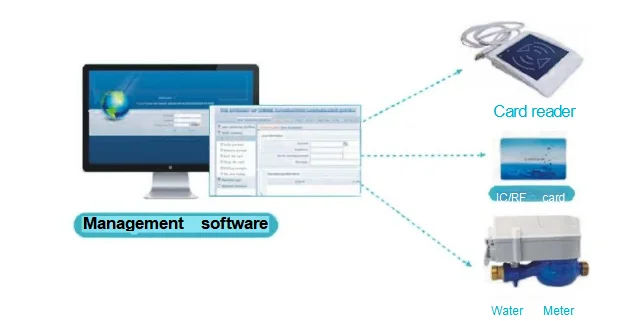

Working Principle:

Information carried by card between software and water meter

Instructions For Use:

.End-users pre-purchase water volume with the IC card from the water management department.

2.The water management department person create a new user account for management and write the purchased water volume into the IC card by softwar(shengda offered for you for free)

3.The end-user swipe the IC card to the card-swiping area of the water meter.At this time,the LCD of the water meter willdisplay the water volume left and open the valve.The user can use the water.

4.The end-user begins to use water and the remaining water volume decrease.When the water volume leftis reaching to a setting amount(such as 3m³),an alarm signal will be generated to remind the end-user to purchase water volume

Using condition:(Size:DN 15~DN 300)

▶Body:Brass,Nylon,stainless steel

▶Type:Dry dial or wet dial(standard)

▶Max work pressure:Pn16.

▶Protection class:Ip68

▶Pressure loss:≤0.063Mpa

▶Water temperature:T30,T90

▶Standards:ISO4064 Class B

▶ Certificate:MID

▶Maximum reading:99999.9m³

▶Battery life:≥6 years

▶Software:free for clients

▶Composition:Network servrt.smart card,card reader.

Function:

1.Non-contact IC card technology,wireless data transmission is used which make the water meter easy to operate.

2.The body of the prepaid water meter is IP68 waterproof which can be completely immersed in the water.

3.The water meter open and close the valve periodically to prevent the water meter from blocking.

4.It will make alarm or close the valve when the water volume in the card is insufficient to remind the user to purchase.

5.The water meter willclose the valve automatically when the remaining water volume is0,And the water meter will open the valve after swiping the card in which the user had already purchased water colume.

6.When the water meter come accoss the magnetic attack,the water meter will automatically close the valve.

7.Detailed LCD display,the data will not lost even without power and can be stored for more than 10 years.

8.High temperature resistance,low power and low pressure loss;

9.The battery life of the water meter is more than 6years and can be replaced.When the battery power is insufficient, the display of the water meter have alarm indication.

Product Technical Parameters:

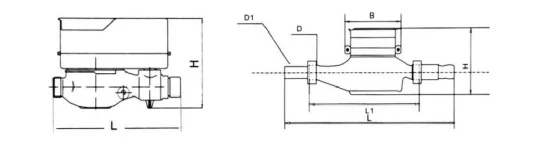

Product Drawing:

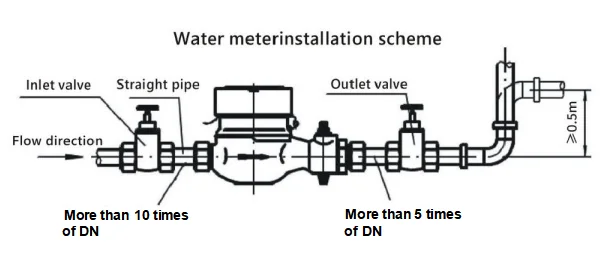

Installaton:

1.The straight pipe length before inlet should be 10 times of the water meter diameter,straight pipe length behind outlet should be 5 times of the water meter diameter

2.Water flow direction should be the same as the arrow on the water meter body indicates.

3.Climate and mechanical environment should begrade B.

4.Electromagnetic environment class should be E1 level.
