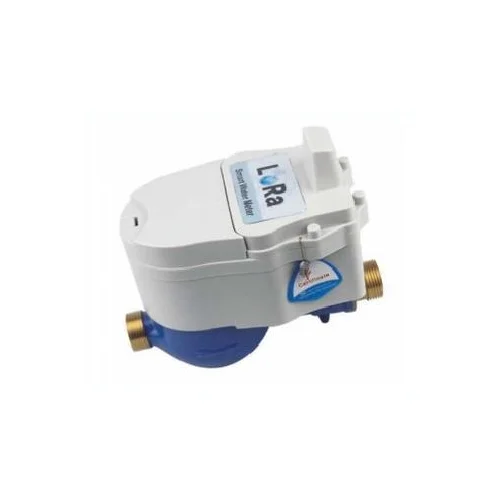

Lora Water Meter
The Lora water meter,is one kind of smart water meter which use the wireless LoRa technology.The LoRa water meter use the private LoRa protocol.It can realize the fuction real time meter reading,instant valve control etc.
Using condition:
▶Size:DN15-DN50(DN50~DN300,please check bulk water meter)
▶Body:Brass(with valve)/iron(without valve)
▶Type:Dry dial/wet dial(standard)
▶ Max work pressure:Pn16.
▶Protection class:Ip68
▶ Protocol:LORA
▶ Frequency:470-510MHZ868-915MHZ
▶ Battery:6-7years
▶ Pressure loss:≤0.063Mpa
▶Water temperature:T30,T90
▶Standards:ISO4064.
▶Certificate:MID
▶Working mode:Class A
▶ Software:free for clients

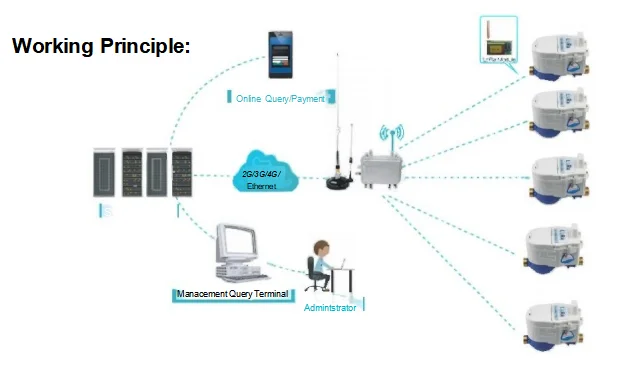

▶ Composition:LoRa water meter,Collector,concentrator,Network servrt.
Function of LoRa water meter:
(1)Ultra long-distance communication
Concentrator and water meter communication distance:4-5km in urban environment;10-15km in rural environment.
(2)Ultra low power consumption and long service life
The average power consumption of water meter module is≤20uA.
Three working modes of system:LOP1,LOP2,LOP3,response time:12s,24h-12s,24h;according to ER18505 battery only use 50%capacity,the lifespan of meter module is 6 years,8 years,10 years.
(3)Anti-interference,high reliability
Frequency hopping technology avoids co-channel interference and improves transmission reliability.
(4)Large management capacity
The concentrator can support up to 5,000 LoRa water meters.stores each water meter with 10 years data.
(5)Easy installation and high success rate of meter reading
Dual meter reading mode:24h active reporting of metering data;real-time meter reading control valve(switching valve).etc.
Technical Parameters:
| Model-DN | Flow range | Q3 | Q4 | Q2 | Q1 | Min.Reading | Max.Reading | |
| Q3/Q1 | Q2/Q1 | m³/h | m³ | |||||
| LXSY-15E | 80 | 1.6 | 2.5 | 3.125 | 0.05 | 0.03125 | 0.0001 | 99999 |
| LXSY-20E | 80 | 1.6 | 4.0 | 5.0 | 0.08 | 0.05 | 0.0001 | 99999 |
| LXSY-25E | 80 | 1.6 | 6.3 | 7.875 | 0.126 | 0.07875 | 0.0001 | 99999 |

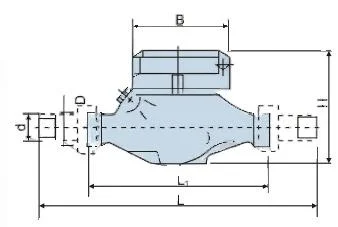

Dimension and Weight:
| Model | Length(L) | Width(W) | Height(H) | connect | |
| LXSY-15E | Horizontal | 165mm | 99mm | 140mm | GB |
| LXSY-20E | Horizontal | 195mm | 99mm | 140mm | ScrewG1B |
| LXSY-25E | Horizontal | 225mm | 99mm | 140mm | ScrewG1B |
A.Slow flow(Q1≤Q<Q2)Max permissible errors:±5%
B.Water temperature≤30℃,Fast flow(Q2≤Q≤Q4),Maxpermissible errors:±2% Water temperature>30℃,Fast flow(Q2≤Q≤Q4),Max permissible errors:±3%
