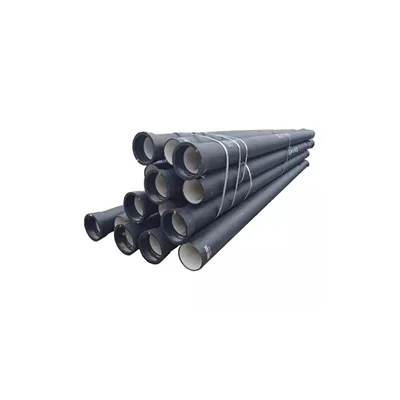

T-joint Ductile Iron Pipe

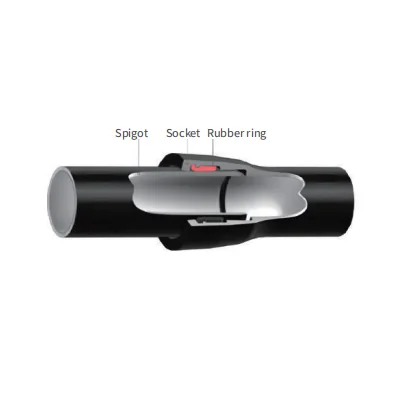

The contact pressure generated by the compression deformation of the rubber ring acts as a self-sealing, and the hard rubber part of the rubber ring acts as a fixed centering function. The interface can be deflected to adapt to a certain foundation settlement and achieve long-distance steering installation.

Standard: ISO2531, EN545, EN598

Category: Class K, Class C

Joint type: T-joint

Range: DN80-DN2600

Length: 8.15m, 6.0m, 5.7m, can be customized according to customer requirements

Application: drainage of water supply projects, sewage irrigation, water pipelines, etc.

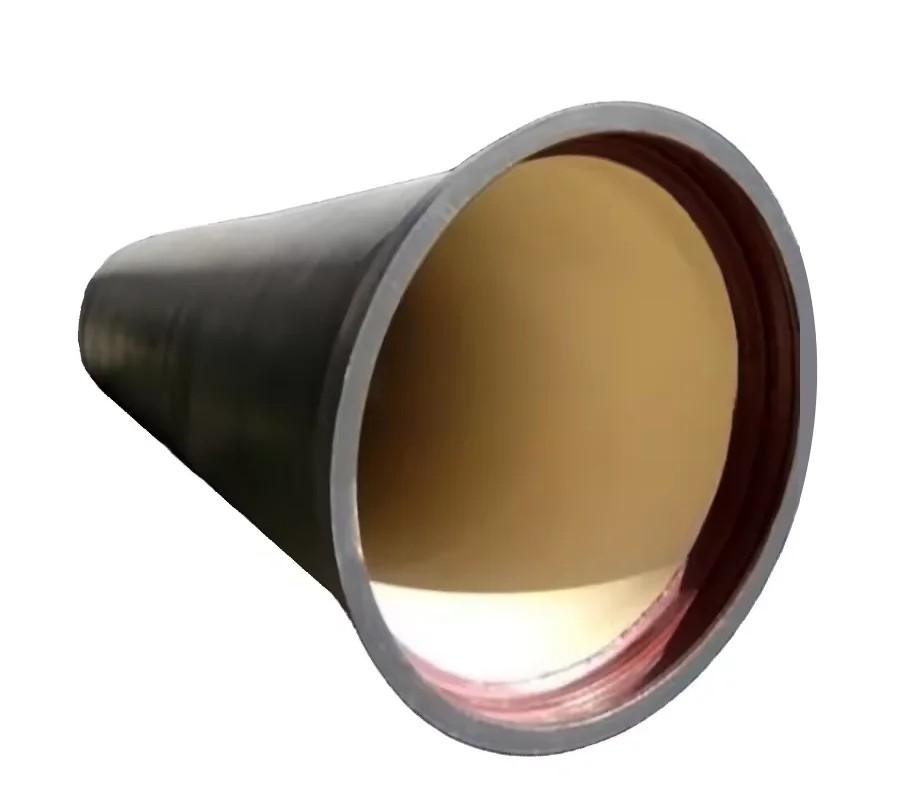

Internal coating: Portland cement mortar lining;

Sulfate-resistant cement mortar lining;

High alumina cement mortar;

Fusion epoxy coating;

Polyurethane lining ceramic epoxy lining PU;

Coating can also be carried out according to customer requirements

Extenal: Zinc (130 g/m2) + Asphalt (70 microns) painting/130 g/m2;

Fusion epoxy coating/zinc-aluminum alloy (400g/m2) + liquid epoxy coating/400g/m2;

Coating can also be done according to customer requirements.

Accessories: rubber ring (SBR, NBR, EPDMVSBR, NBR, EPDM)

Packaging: bulk, steel strapping.
