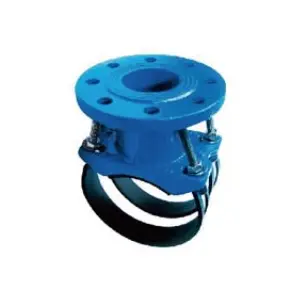

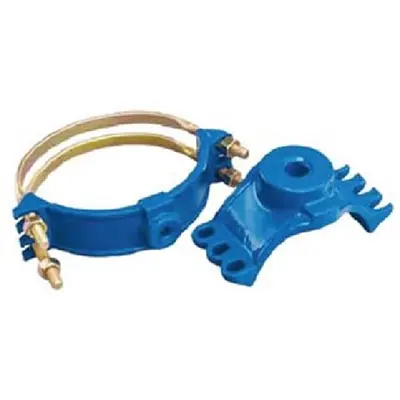

Universal Saddle with Outlet Thread/Flange
·Ductile iron GGG-40 epoxy coated outlet flange.·EPDM gasket according to UNE EN 681/1.·Mechanical insertion of the gasket in order to guarantee major watertightness.DNMain PipePNBands No.4080/100010-1625080/70010-16260/65100/70010-16280125/70010-162100150/50010......
·Ductile iron GGG-40 epoxy coated outlet flange.
·EPDM gasket according to UNE EN 681/1.
·EPDM gasket according to UNE EN 681/1.
·Mechanical insertion of the gasket in order to guarantee major watertightness.
| DN | Main Pipe | PN | Bands No. |
| 40 | 80/1000 | 10-16 | 2 |
| 50 | 80/700 | 10-16 | 2 |
| 60/65 | 100/700 | 10-16 | 2 |
| 80 | 125/700 | 10-16 | 2 |
| 100 | 150/500 | 10-16 | 2 |
| 125 | 200/600 | 10-16 | 2 |
| 150 | 300/500 | 10-16 | 3 |
| 150 | 500/900 | 10-16 | 3 |
