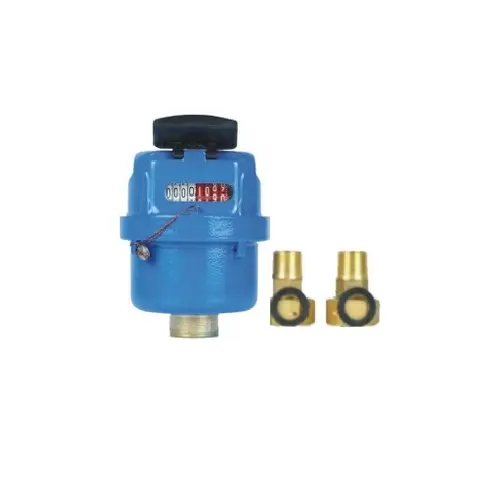

Volumetric Water Meter
The measurement of volumetric water meter is more accurate than that of multi jet water meter.
The measurement error of multi jet water meter will have an error of±2%,while the error of volumetric water meter can be
controlled at the level of±0.5%or even lower.
Deliver condition:
▶Size:DN15,DN20
▶Max work pressure:PN16
▶Pressure loss:≤0.063Mpa
▶Water temperature:T30,T50
▶Standards:ISO4064.Class C
▶R :R160(R=Q3/Q1)(optional)
▶ Install:Horizontal,Vertical or inclined
▶Connection method:BSP Thread

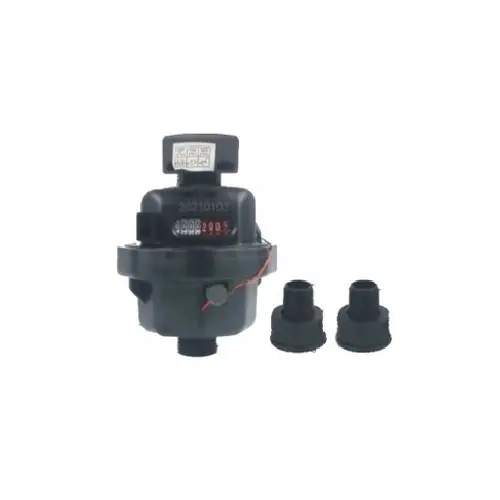

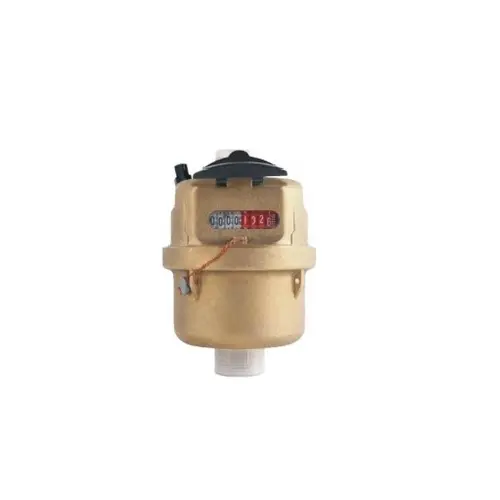

▶Body can be choose brass,brass with primer and ABS.
Adopt volumetric rotary piston,more accurate for measurement;
▶Better sensitivity
▶Large flow range
▶Multi angle installation
▶Remote transmission device can be added upon request

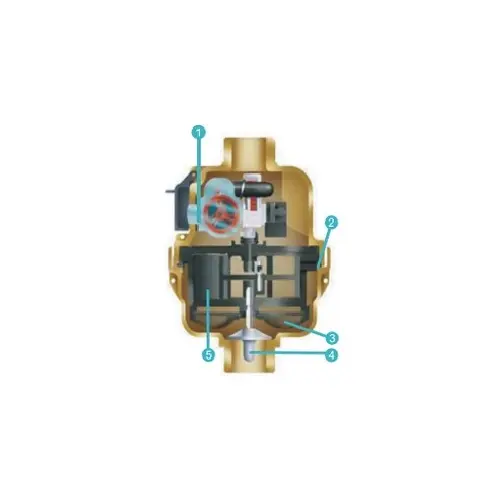

Inner structure of the water meter:
1.Easy to read register
2."o"ring seal
3.Strainer
4.Optional non-return valve
5.Grooved piston design gives long working life and reduces blockages

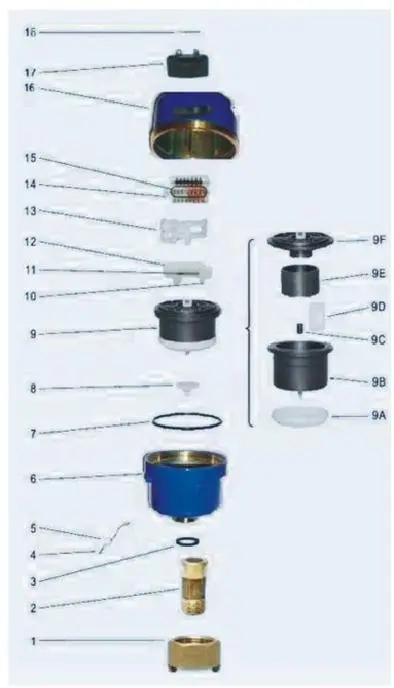

| Code | Description | Quantity |
| 1 | Nut | 2 |
| 2 | Coupling | 2 |
| 3 | Gasket | 2 |
| 4 | Copper Wire | 1 |
| 5 | Seal lead | 1 |
| 6 | Bottom Body | 1 |
| 7 | O-ring | 1 |
| 8 | Non-return Valve | 1 |
| 9A | Strainer | 1 |
| 9B | Chamber | 1 |
| 9C | Bush | 1 |
| 9D | Division plate | 1 |
| 9E | Piston | 1 |
| 9F | Cover | 1 |
| 10 | Clamp frame | 1 |
| 11 | Spring | 1 |
| 12 | Clamp slider | 1 |
| 13 | Transmission assembly | 1 |
| 14 | Register | 1 |
| 15 | O-ring | 1 |
| 16 | Upper body | 1 |
| 17 | Lid | 1 |
| 18 | Hinge pin | 1 |

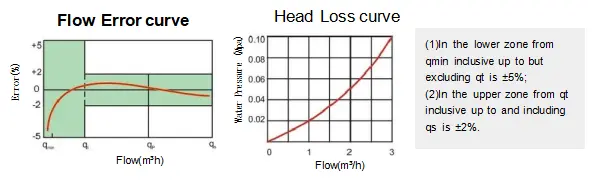

Main metrological parameters:
| Size | Class | R(Q3/Q1) | Q4(m³/H) | Q3(m³/H) | Q2(L/H) | Q1(L/H) |
| DN15 | C | 160 | 3.125 | 2.5 | 25 | 15.625 |
Water Meter Size and Packing Details:

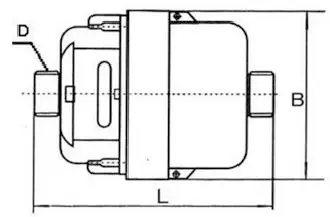

| Size | Length (mm) | Broad/Width (mm) | Connection thread | Weight (kg) |
| DN15 | 115 | 95 | G3/4B | 1 |
| Size | Product Size (cm) | Product Weight (kg) | Packages in 1 carton | Carton size (cm) | Total weight for 1 carton(kg) |
| DN15 | 11.5*20.9*9 | 1.1 | 10 | 44.5*26.5*12 | 11 |
