Woltman Water Meter WS-40-200

Applicable conditions:

Material:Cast iron shell

▶ Cold water:0.1~30℃

▶Hot water:0.1~90℃

▶Working pressure:1.0MPa

Installation method:

1.Horizontal installation.

2.Additional water filter is not required.

3.The water inlet/outlet of the water meter does not need the requirements of straight pipe section.

Characteristics:

1.No worm geartransmission mechanism,impeller directly drives counter,high transmission efficiency and low starting flow.

2.Wide range,suitable for occasions with large flow change.

3.Full flow detection,high measurement accuracy.

4.Dry magnetictransmission structure ensures that the counter is clean and clear.

5.The six digit enlarged digital wheel displays the reading,and the reading is clearer.

6.The detachable metering movement structure is convenient for maintenance.

7.Internal adjustment structure to prevent private meter adjustment.

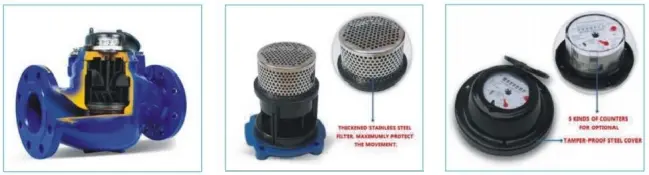

8.Built in stainless steel filter screen effectively protects the measuring mechanism.

9.The high wear-resistant bearing system(gem bearing for aviation instrument+high wear-resistant cemented carbide shaft)ensures the long-term stability and reliability of the product and significantly improves the maximum flow of the product.

10.Stainless steel fasteners and epoxy resin powder are applied inside and outside the shell to maximize rust prevention and prolong the service life of the product;Optional anti prying protective cover(prevent users from disassembling the movement without permission,damaging or changing the measuring mechanism,and play the role of anti-theft water to thegreatest extent).

Technical parameter:

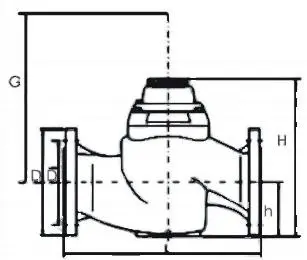

Overall dimension and weight:

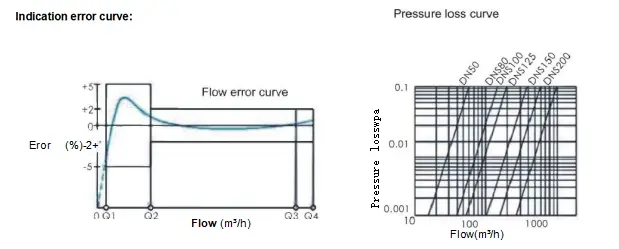

A.The maximum allowable error of a low area(Q1≤Q<Q2)is±5%

B.When the water temperature is≤30℃,

the maximum allowable error in the high area(Q2≤Q≤Q4)is±2% When the water temperature is>30℃,

the maximum allowable error in the high area(Q2≤Q≤Q4)is±3%
