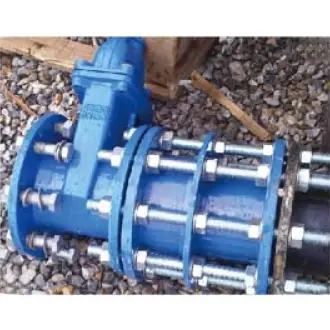

Dismantling Joint Class PN40
DNDkn1L1L2GewichtWeightmmmmmmmmmmmmkg80200160819230380291002351908232403903512527022082824039043150300250828250400562003753201231250400962504503851234270440132300515450163427044016935058051016372904602414006605851640300500289450685610204030050038050075567020433205104526008907952049340550588700995900......
| DN | D | k | n | 1 | L1 | L2 | Gewicht Weight |
| mm | mm | mm |
|
mm | mm | mm | kg |
| 80 | 200 | 160 | 8 | 19 | 230 | 380 | 29 |
| 100 | 235 | 190 | 8 | 23 | 240 | 390 | 35 |
| 125 | 270 | 220 | 8 | 28 | 240 | 390 | 43 |
| 150 | 300 | 250 | 8 | 28 | 250 | 400 | 56 |
| 200 | 375 | 320 | 12 | 31 | 250 | 400 | 96 |
| 250 | 450 | 385 | 12 | 34 | 270 | 440 | 132 |
| 300 | 515 | 450 | 16 | 34 | 270 | 440 | 169 |
| 350 | 580 | 510 | 16 | 37 | 290 | 460 | 241 |
| 400 | 660 | 585 | 16 | 40 | 300 | 500 | 289 |
| 450 | 685 | 610 | 20 | 40 | 300 | 500 | 380 |
| 500 | 755 | 670 | 20 | 43 | 320 | 510 | 452 |
| 600 | 890 | 795 | 20 | 49 | 340 | 550 | 588 |
| 700 | 995 | 900 | 24 | 49 | 380 | 570 | 635 |
| 800 | 1140 | 1030 | 24 | 56 | 380 | 620 | 842 |
| 900 | 1250 | 1140 | 28 | 56 | 380 | 620 | 946 |
| 1000 | 1360 | 1250 | 28 | 56 | 420 | 670 | 1450 |
| 1200 | 1575 | 1460 | 32 | 62 | 450 | 720 | 1665 |
