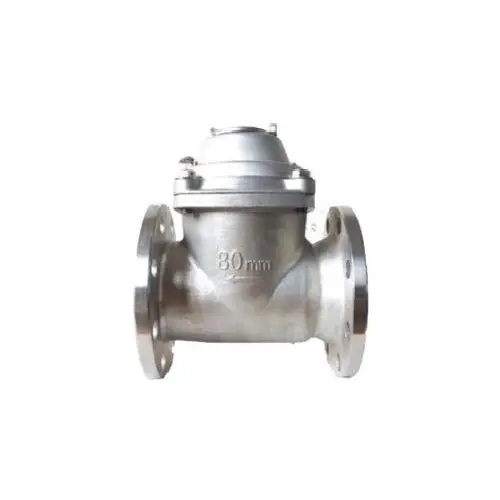

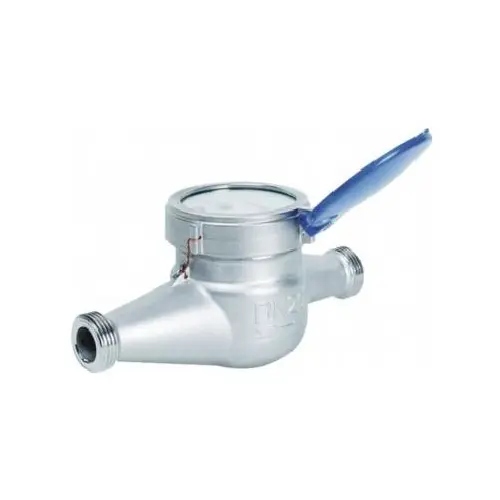

Stainless Steel Water Meter
Stainless steel water meter is hygienic and environment-friendly,has no secondary pollution,is acid and alkali resistant,will not produce corrosion and exudation at high and low temperatures,is safe and reliable,and meets the food hygiene standard.Itis a new product of environmental protection and energy saving.And longer service life,can be installed in harsh environment.
Supplied conditions:
▶Size:DN15-DN300
▶Body:SS304,SS316,SS316L(optional)
▶Type:Dry dial/wet dial(optional)
▶Max work pressure:PN16/PN10(optional)
▶Pressure loss:≤0.063Mpa
▶Water temperature:T30,T50,T90(optional)
▶Standards:ISO4064.class B
▶R :R80/R100/(R=Q3/Q1)(optional)
▶ Install:Horizontal use
Characteristics:
1.Stainless steel water meter,corrosion resistance,acid resistance.
2.More hygienic,Longer service life.
3.Support OEM
4.Proven multi-jet flow meter design
5.Dry dial,Magnetic transmission structure.
6.Antimagnetic,Antifreezing
7.Vacuum sealed counter,keep clear in long term.
8.ISO4064,Class B
9.Remote transmission device can be added upon request
Technical parameter:
| DN (mm) | Class | Maximum flow Q4 | Common flow Q3 | Boundary flow Q2 | Minimum flow Q1 | Minimum reading | Maximum reading |
| m³/h | m | ³ | |||||
| DN15 | B | 3.125 | 2.5 | 0.05 | 0.03125 | 0.0001 | 99999 |
| DN20 | B | 5 | 4 | 0.08 | 0.05 | 0.0001 | 99999 |
| DN25 | B | 7.875 | 6.3 | 0.126 | 0.07875 | 0.0001 | 99999 |
| DN32 | B | 12.5 | 10 | 0.2 | 0.125 | 0.0001 | 99999 |
| DN40 | B | 20 | 16 | 0.32 | 0.2 | 0.001 | 99999 |
| DN50 | B | 31.25 | 25 | 3.15 | 0.5 | 0.001 | 99999 |

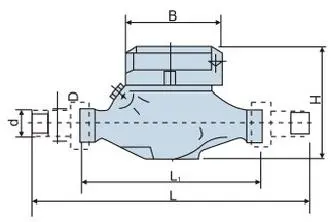

Size and Weight:
| DN (mm) | Length L1(mm) | Width B(mm) | Height H(mm) | Threaded Connection | Weight (kg) | |
| d | D | |||||
| DN15 | 165 | 98 | 114 | R1/2 | G3/4 | 1.2 |
| DN20 | 195 | 98 | 114 | R3/4 | G1 | 1.6 |
| DN25 | 225 | 103 | 114 | R1 | G11/4 | 2.6 |
| DN32 | 230 | 103 | 114 | R11/4 | G11/2 | 3.2 |
| DN40 | 245 | 125 | 144 | R11/2 | G2 | 4.5 |
| DN50 | 300 | 135 | 155 | R2 | G21/2 | 7 |

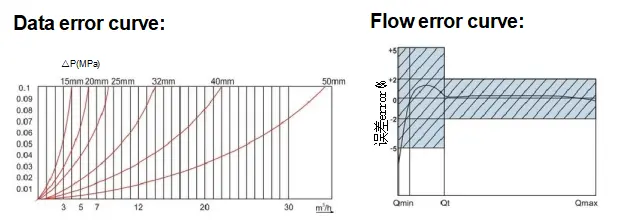

A.Slow flow(Q1≤Q<Q2)Max permissible errors:±5%
B.Water temperatire≤30℃,Fast flow(Q2≤Q≤Q4),Max permissible errors:±2% Water temperatire>30℃,Fast flow(Q2≤Q≤Q4),Max permissible errors:±3%
