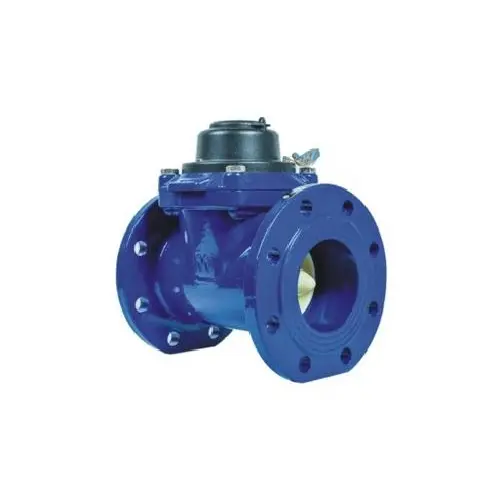

Woltman Water Meter
Woltman Helix water meter can be divided into horizontal Helix Woltman water meter(WPH)and vertical Helix
Woltman water meter(WS)according to different of water meter internal structure,but the water meters are
installed horizontally,The advantage of vertical Woltman water meter(WS)is a wider flow range(R80/R160/R200). The installation does not need the strict requirements of straight pipe section and external filter.
Use:horizontal woltman water meter is used to measure the total flow of large flow pipeline.It is especially suitable for water supply main pipeine and mining water demand of large plants.The main features are large circulation capacity, small volume,compact structure,easy to use and maintenance.
Applicable conditions:
▶ Size:DN40~DN600
▶Material:Cast iron shell
▶ Cold water:0.1~30℃
▶ Hot water:0.1~90℃
▶ Working pressure:1.0MPa/1.6Mpa
Installation method:
1.Horizontal installation.
2.Additional water filter is required.
3.The water inlet/outlet of the water meter needs straight pipe section U10/D5.
Characteristics:
1.Dry magnetic transmission structure ensures that the counter is clean and clear.
2.Large flow capacity,small pressure loss and stable performance curve.
3.The measuring movement is replaceable and easy to disassemble.
4.Stainless steel fasteners and epoxy resin powder are sprayed inside and outside the shellto maximize rust prevention and prolong the service life of the product.
5.The measuring mechanism has good universality,magnetic connection,smalltransmission resistance,sensitive and reliable operation.
6.The counter is vacuum sealed,anti condensation and atomization,and can keep the reading clear and accurate all year round
Technical parameter:
|
DN (mm) |
Flow range |
Maximum Q4 |
Common flow Q3 |
Boundary Q |
Minimum Q1 |
Minimum reading |
Maximum reading |
|
Q3/Q1 |
m |
³/h |
m³ |
||||
|
40 |
80 |
50 |
40 |
0.8 |
0.5 |
0.001 |
999,999 |
|
50 |
80 |
50 |
40 |
0.8 |
0.5 |
0.001 |
999,999 |
|
65 |
80 |
78.75 |
63 |
1.4 |
0.79 |
0.001 |
999,999 |
|
80 |
80 |
125 |
100 |
2.0 |
1.25 |
0.001 |
999,999 |
|
100 |
80 |
200 |
160 |
3.2 |
2.0 |
0.001 |
999,999 |
|
150 |
80 |
500 |
400 |
8.0 |
5.0 |
0.001 |
9,999,999 |
|
200 |
80 |
800 |
630 |
12.6 |
7.88 |
0.001 |
9,999,999 |
|
250 |
80 |
1260 |
1008 |
20.16 |
12.6 |
0.02 |
9,999,999 |
|
300 |
80 |
2000 |
1600 |
32 |
20 |
0.02 |
9,999,999 |
|
350 |
80 |
2800 |
2240 |
44.18 |
28 |
0.2 |
999,999,999 |
|
400 |
80 |
3200 |
2560 |
51.2 |
32 |
0.2 |
999,999,999 |
|
450 |
80 |
3200 |
2560 |
51.2 |
32 |
0.2 |
999,999,999 |
|
500 |
80 |
5000 |
4000 |
80 |
50 |
0.2 |
999,999,999 |
|
600 |
80 |
8000 |
6400 |
128 |
80 |
0.2 |
999,999,999 |
Overall dimension and weight:
|
DN (mm) |
Length |
Height |
|
Connection flange |
Reference weight |
|
|
L(mm) |
H(mm) |
Flange outer diameter |
Center diameter of bolt hole D1(mm) |
Number of connecting bolts |
kg |
|
|
40 |
200 |
198 |
150 |
110 |
4-M16 |
8.3 |
|
50 |
200 |
205 |
165 |
125 |
4-M16 |
10 |
|
65 |
200 |
218 |
185 |
145 |
4-M16 |
12.5 |
|
80 |
225 |
280 |
200 |
160 |
8-M16 |
13.6 |
|
100 |
250 |
290 |
220 |
180 |
8-M16 |
18.3 |
|
150 |
300 |
320 |
285 |
240 |
8-M20 |
28 |
|
200 |
350 |
365 |
340 |
295 |
12-M20 |
44.8 |
|
250 |
450 |
434 |
450 |
400 |
12-M20 |
80 |
|
300 |
500 |
459 |
500 |
410 |
12-M24 |
98 |
|
350 |
500 |
590 |
505/520 |
460/470 |
16-M20/16-M24 |
145 |
|
400 |
600 |
660 |
565/580 |
515/525 |
16-M24/16-M24 |
199 |
|
450 |
600 |
700 |
615/640 |
565/585 |
20-M24/20-M27 |
270 |
|
500 |
800 |
760 |
670/715 |
620/650 |
20-M24/20-M30 |
320 |
|
600 |
800 |
880 |
780/840 |
725/770 |
20-M27/20-M33 |
520 |
A.The maximum allowable error ofa low area(Q1≤Q<Q2)is±5%
B.When the water temperature is≤30℃,
the maximum allowable error in the high area(Q2≤Q≤Q4)is±2% When the water temperature is>30℃,
the maximum allowable error in the high area(Q2≤Q≤Q4)is±3%
