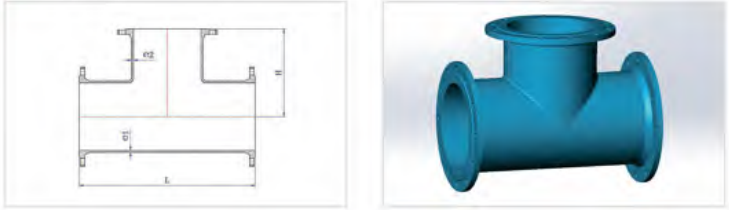

All Flange Tee

      Owing to its robust flanged construction, the All Flange Tee is particularly suited for demanding high-pressure, high-temperature service conditions and is often the preferred solution for large-diameter fluid transport systems. Key characteristics include:All three connections rely on bolting to mating flanges.A suitable gasket must be placed between each flange face to ensure sealing integrity.The pressure rating of the fitting is determined jointly by the flange class (e.g., 150#, 300#, 600#) and material (common grades include carbon steel A105/A350 LF2, stainless steel A182 F304/F316, alloy steels, and duplex stainless steel), while the tee body itself must comply with applicable pressure standards.Dimensions strictly adhere to relevant flange standards (e.g., ASME B16.5 or B16.47) and tee body standards (e.g., ASME B16.9).

For more information, please contact the customer service.

   The All Flange Tee—defined by flanges on all three ports—serves as a critical component in flanged piping systems, enabling reliable branching, simplified maintenance, and resilience in high-pressure, high-temperature, large-diameter applications across heavy industries.

Warranty period: 1 year

Material: ductile iron

Working pressure: PN10, PN16, PN25

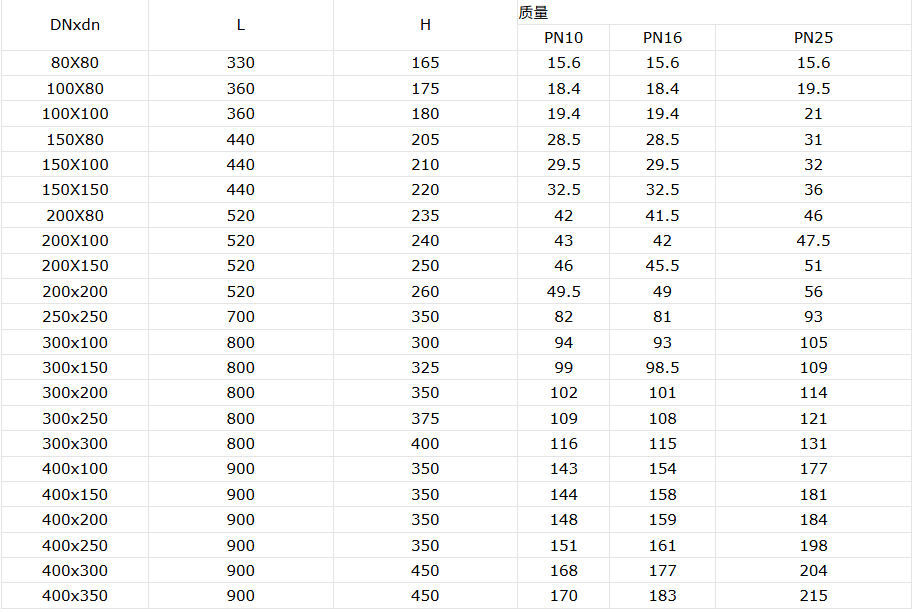

Size: according to specific requirements

Standard: ISO2531 /EN545 /EN598

Color: blue (epoxy resin)
